250mm Automatic Metallographic Equipment , grinder polisher machine Variable Speed Mode

  • 250mm Automatic Metallographic Equipment , grinder polisher machine Variable Speed Mode
  • 250mm Automatic Metallographic Equipment , grinder polisher machine Variable Speed Mode
Herkunftsort Peking
Markenname HUATEC
Zertifizierung ISO, CE, GOST
Modellnummer HAP-2000
Min Bestellmenge 1 Stück
Verpackung Informationen Standardpaket für die Ausfuhr
Lieferzeit 1-4days
Zahlungsbedingungen T/T, PayPal, Western Union
Versorgungsmaterial-Fähigkeit 500 Stück pro Monat

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

- Was ist?:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.

x
Produktdetails
Modell HAP-2000 Scheibendurchmesser 250 mm
Spannung 220 V Macht 550 W
Geschwindigkeit 60 bis 1000 r/min Gesamtdimension 710 x 760 x 640 mm
Gewicht 98kg
Hervorheben

vickers hardness machine

,

rockwell superficial hardness tester
Hinterlass eine Nachricht
Produkt-Beschreibung

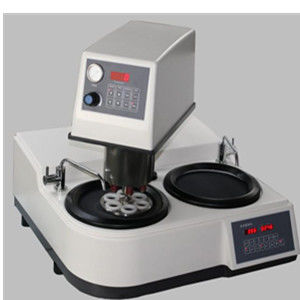

250mm Automatic Metallographic Equipment , grinder polisher machine Variable Speed Mode



HAP-2000 Automatic Grinding-Polishing Machine

Product Feature

Two working plates, standard plates dimension 250mm, 50% larger than normal grinding-polishing machine

Six pieces Φ30mm samples can be polished simultaneous

Single point pneumatic holding, no demo gripper

Grinding and polishing procedure (rough and fine) are continuously done, no machine transition

Frequency Converter control, three-level constant speed mode and variable Speed mode:

1.Three level constant speeds: customer can define three common speeds for pre-grinding, grinding and polishing

2.Variable speed mode: grinding speed 60-1000n/min

3.Eight sections programmable control, automatically stop, convenient for customer getting metallographic demos

Beautiful outlook and good quality



Technical Specifications

Disc diameter: standard 250mm(optional 230mm,200mm)

Speed: 60-1000r/min, (customized)

Grinding head speed: 50-200r/min

Electromotor: 220V,50/60Hz,550W

Overall Dimension : 710x 760 x 640 mm

Net weight: 98kg



Standard Accessory

Name Quantity Name Quantity
Magnetic working plate(254mm) 2 pieces Anti-sticky disc(254mm) 2peices
one side sticky grinding paper(250mm) 320#,1000# 10 pieces/each One side sticky polishing cloth(250mm), velvet fabric 1peice
diamond polishing liquid,6micron,200ml



1bottle

 Lubrication cooling liquid,blue,200ml 1bottle
waterproof ring 1 piece input-water pipe adapter 1 piece
input-water pipe 1 piece power cable 1peice
output-water pipe 1 piece machine certification 1 set
machine manual 1 set packing list 1 set
Machine Guarantee card 1 set




Optional Accessory

metallographic grinding paper GSC250A

l 100peices /package

l material: black carborundum

l sand size:P80# 120# 180＃ 320＃ 600＃ 800＃ 1000＃ 1200＃ 1500＃ 2000＃

l size:Φ250mm

l waterproof and one side sticky, can be attached on the grinding plate directly
Anti-sticky disc MAGNOMET

l anti-sticky disc 5peices/box

l diameter:Φ254mm

l Surface coating with Special anti-sticky layer, can attach the sticky paper and polishing cloth directly, and easily replace without sticky mark.

l Can be reuse

l Can be replace the BUEHLER and STRUERS same production
Polishing cloth FT250A

l polish cloth 10peices/package

l velvet fabric(long floss) / canvas(short floss)/ Woolen cloth(short floss)/ silk cloth(no floss)

l Φ250mm

l one side sticky, can be attached directly on the grinding plate
Diamond grinding and polishing liquid DSU

l Diamond grinding and polishing liquid,500ml/bottle

l Diamond suspending in the liquid, can be dropped automatically or watering pot, Uniformly distribution

l size:0.25, 0.5, 1, 1.5, 2.5, 3, 3.5, 5, 6, 7, 9, 10, 14, 15, 20, 28, 40micron, for different material




Packaging and Shipping

Packaging: Standard export package, wooden case

Delivery: 3-15 days upon receipt of payment,depending on order quantity

Shipping: Can be shipped by sea, air or other means per request.



Our Services:

Warranty: One year

After sales service and maintenance: Lifelong
