xProduktdetails
| Stromversorgung | ± 10% 50HZ 5A Wechselstroms 220V | Ertrag | Wechselstrom 38V 10A |
|---|---|---|---|
| Inspektionsgeschwindigkeit | ≥6 m/min | Gewicht ungefähr | 6.5Kg (Haupteinheit) |
| Produktbezeichnung | Tragbare Magnetpartikeltestfehldetektor | Anwendung | Hauptsächlich zur Erkennung von Oberflächen- und nahe Oberflächen-Rissen von ferromagnetischen Werks |
| Aufzugskraft | AC≥5Kg DC≥18Kg (ohne Gelenke) | Polabstand | 50-200 mm (verstellbar) |
| Currrent | Wechselstrom- und Gleichstromwechsel | Prüfergröße | 95x45x75mm (L*W*H) |
| Größe des Gehäuses | 170x140x70mm (L*W*H) | ||
| Hervorheben | ac dc magnetic particle test equipment,huatec magnetic particle test equipment,ac dc ndt magnetic particle testing |
||
Produkt-Beschreibung

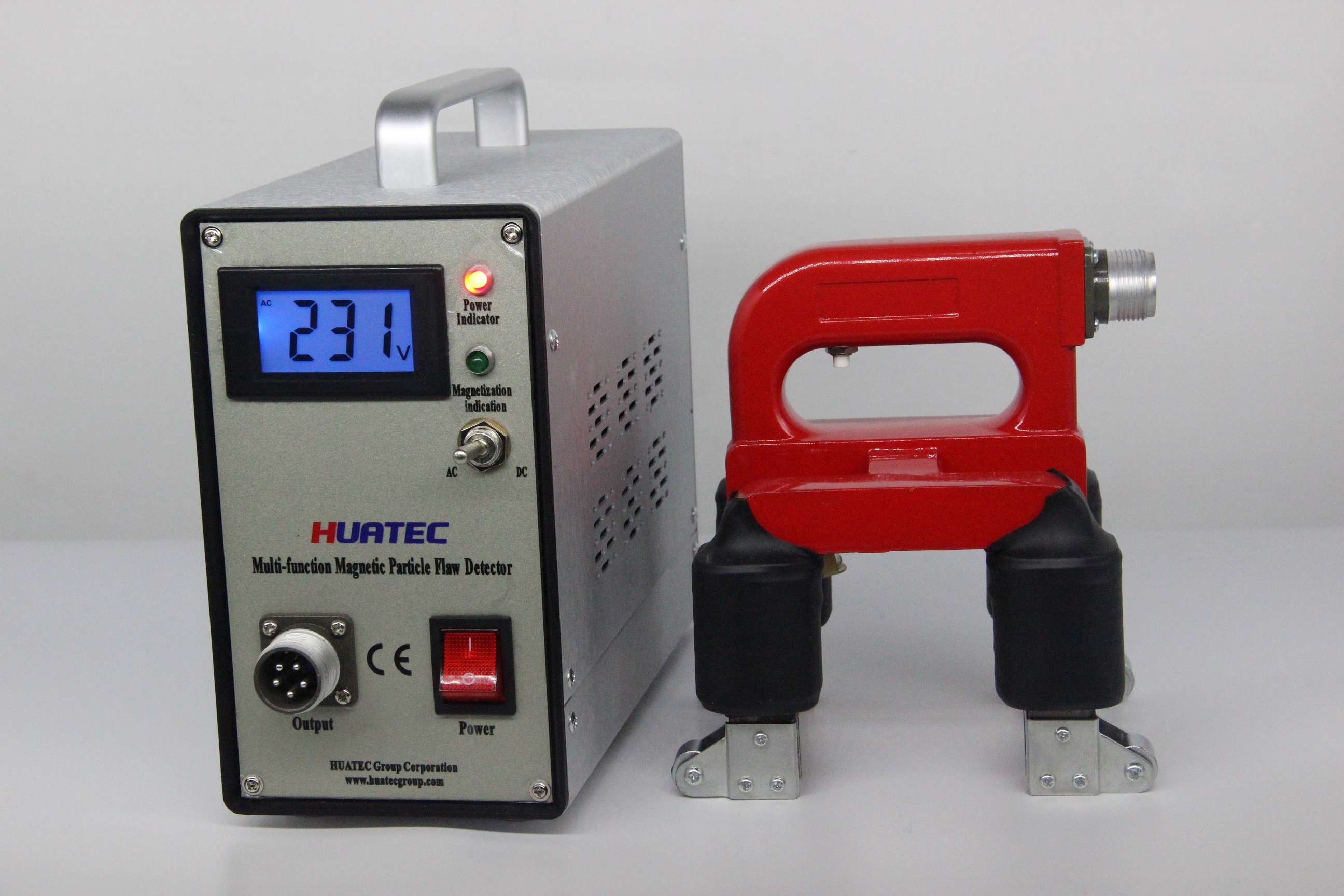

AC And DC Surface And Near Surface Cracks Portable Multifunction Magnetic Particle Test Equipment
Introduction:

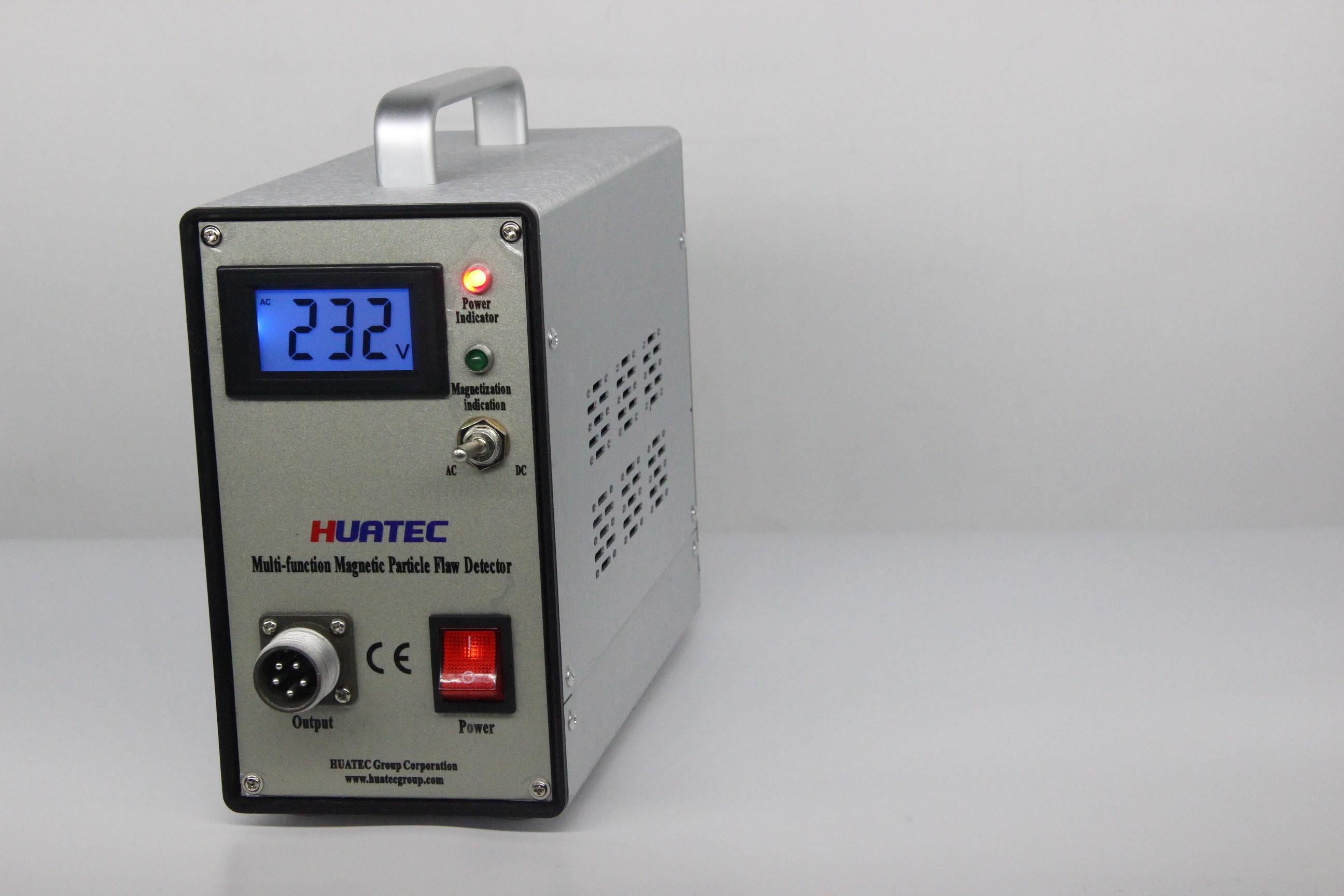

HCDX-ISC composite magnetic powder flaw detector adopts silicon controlled contactless switch, with low noise, strong magnetic force, long service life and simple operation, suitable for field and laboratory use. The instrument adopts combined configuration, and users can choose probe freely according to their needs. Type A, D, E, O probe can be configured according to user requirements.
AC and DC switchable for HCDX-ISC serial portable multifunction magnetic particle flaw detector.
HCDX-ISC serial portable multifunction magnetic particle flaw detector adopts 8-bit MCU as the controller (with the phase controlled circuit), In addition, the program of MCU can enjoy lifetime free upgrades, and type A, D, E, O probe can be configured according to user requirements.
Application:
Mainly used to detect surface and near surface cracks of ferromagnetic metal parts.
Boiler pressure vessel, steel structure, forgings, castings, welding parts, machined parts, etc.
The standard probes introduction for model HCDX-ISC:

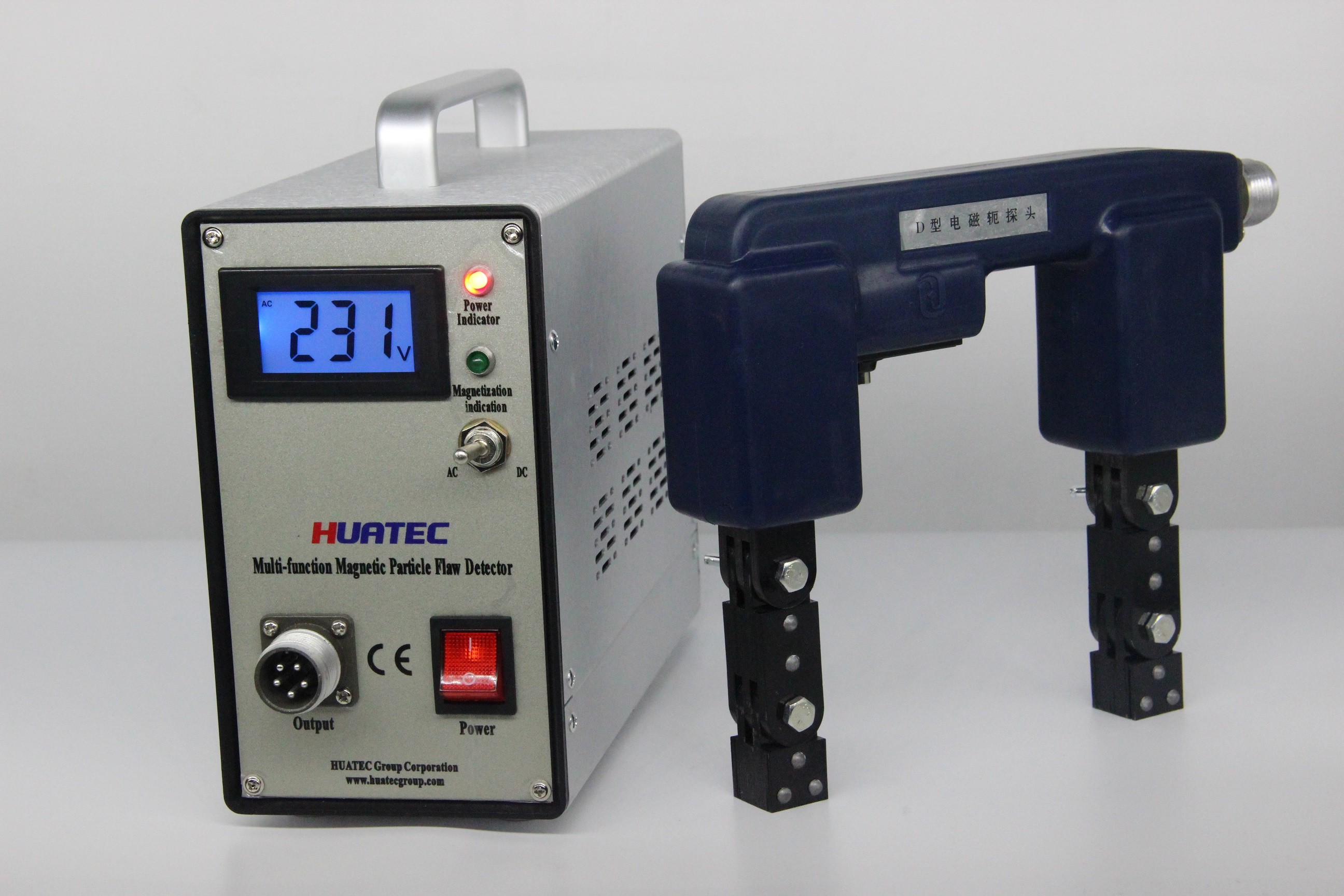

Type D probe (electromagnetic yoke probe): equipped with movable joints, can magnetize and detect the surface workpiece.

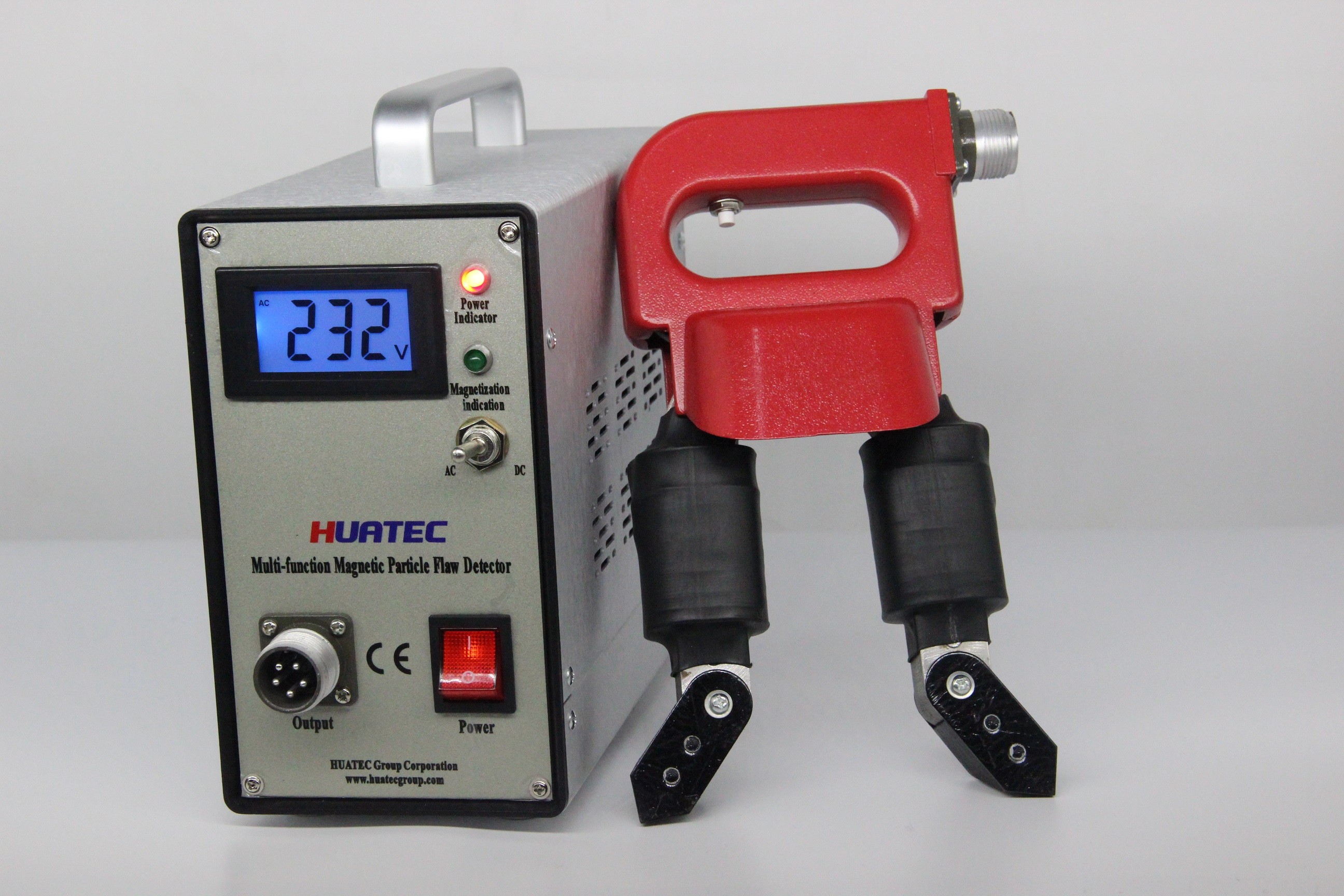

Type A probe (horseshoe probe): suitable for all kinds of fillet weld, large workpiece inside and outside corners of local magnetization inspection, equipped with working lights.
Technical parameters:
Power supply: AC 220V ± 10% 50HZ 5A
Output: AC 38V 10A
Type A.D.E.O probes are optional and available
Inspection speed: ≥6 m/min
Temperature rise of probe: ≤60℃
Working beat: it is recommended to work for a long period of continuous operation: magnetizing time ≤3 seconds, gap time ≥5 seconds
Weight: about 6.5Kg (main unit)

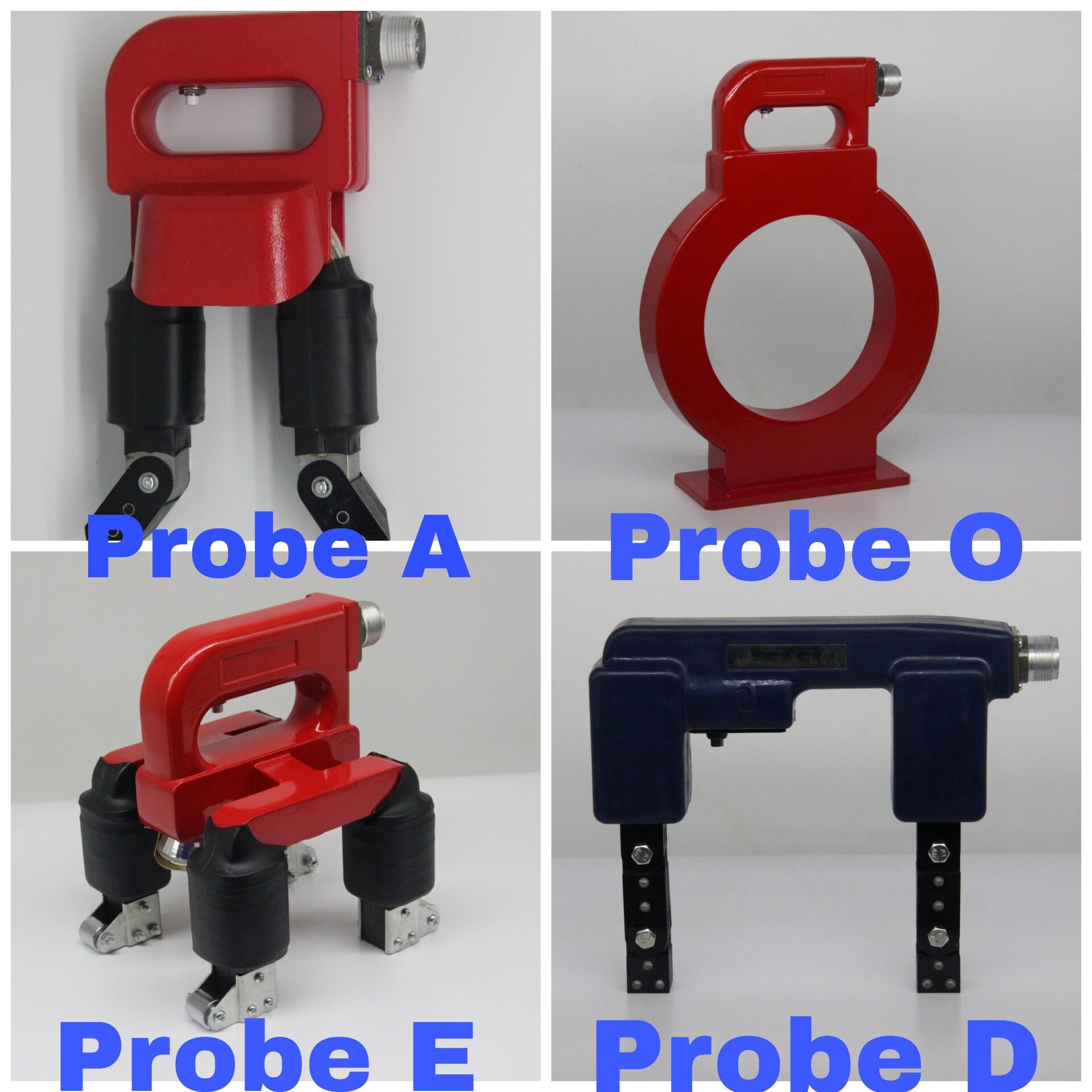

All optional probes parameters:
| D type probe |
Lifting force: AC≥5Kg DC≥18Kg (no joints) Pole distance: 50-200mm (adjustable) Operating current: ≥8A Working voltage: AC=38V, DC=9V Weight: 2.5 Kg |
| Ａtype probe |
Lifting force: AC≥ 4.5kg DC≥18Kg Pole distance: 20-160mm (adjustable) Working voltage: AC=38V, DC=9V Weight: 2.0 Kg |
| Ｏtype probe |
Central magnetic intensity: 180Oe Working voltage: AC=38V Inside diameter: 150 mm Weight: 2.5 Kg |
| Ｅtype probe |
Lifting force: ≥12Kg Distance: 110 mm Operating current: ≥7A Inspection speed: 6 m/min Working voltage: 38 v left, 2 Weight: 3.0 Kg |
Standard delivery:
Host HCDX-ISC 1
Type D yoke probe 1
Type A probe 1
The power line 1
The probe line 1

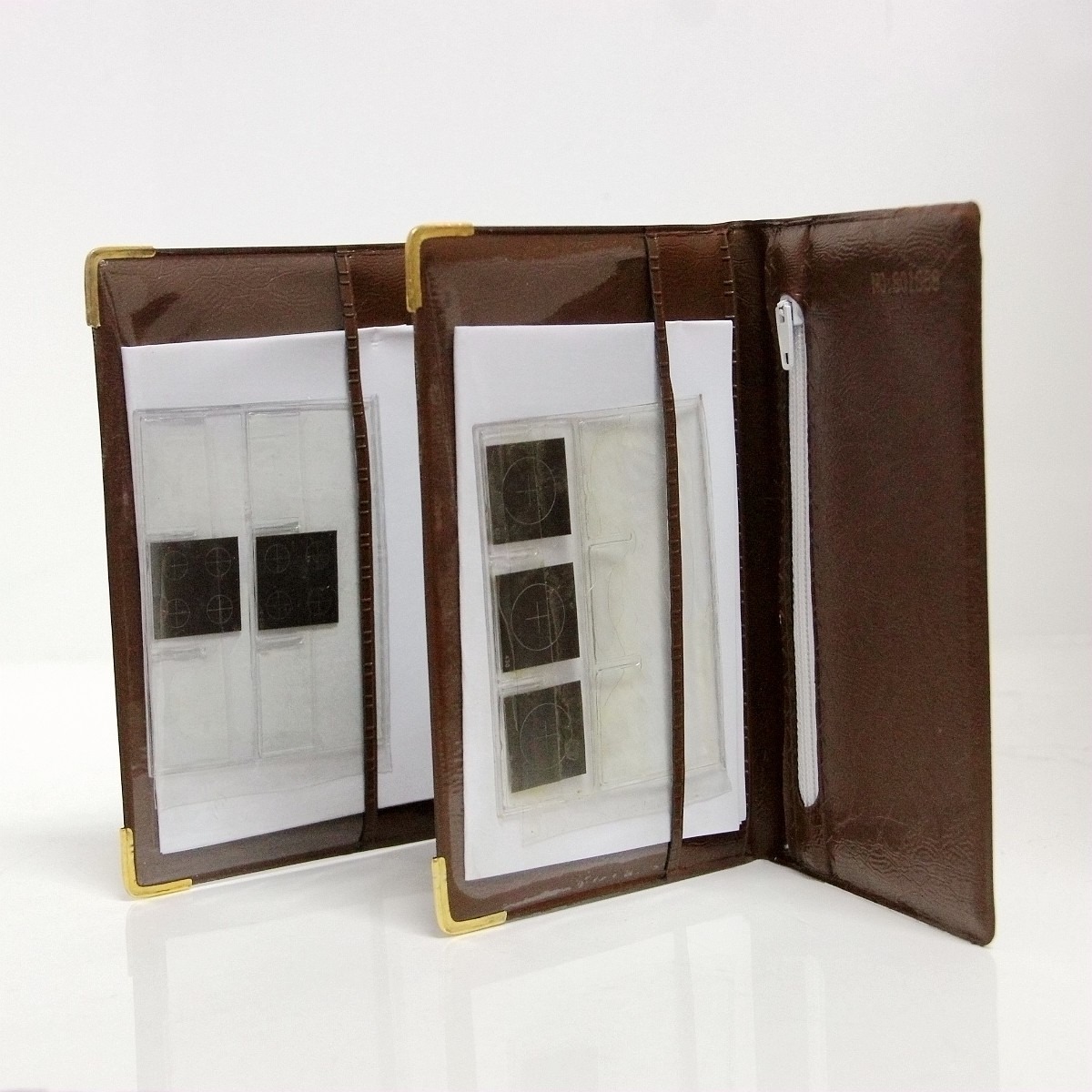

Standard specimen 1
Operation manual 1
Certificate 1
Optional accessories:
Type A probe
O the probe
E probe
D probe
Dead weight

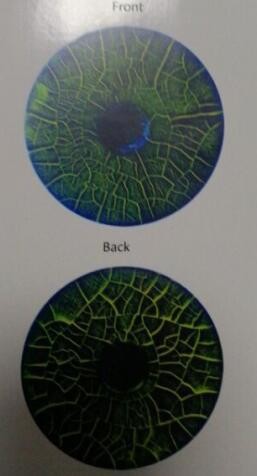

Test specimen
UV light
