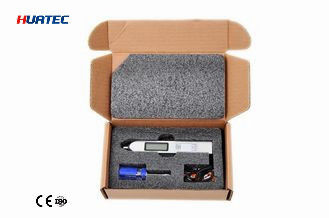

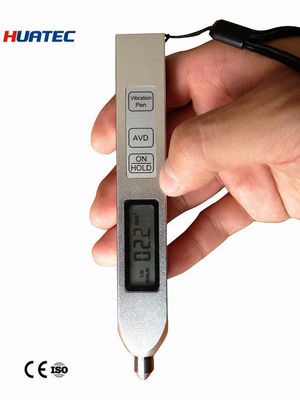

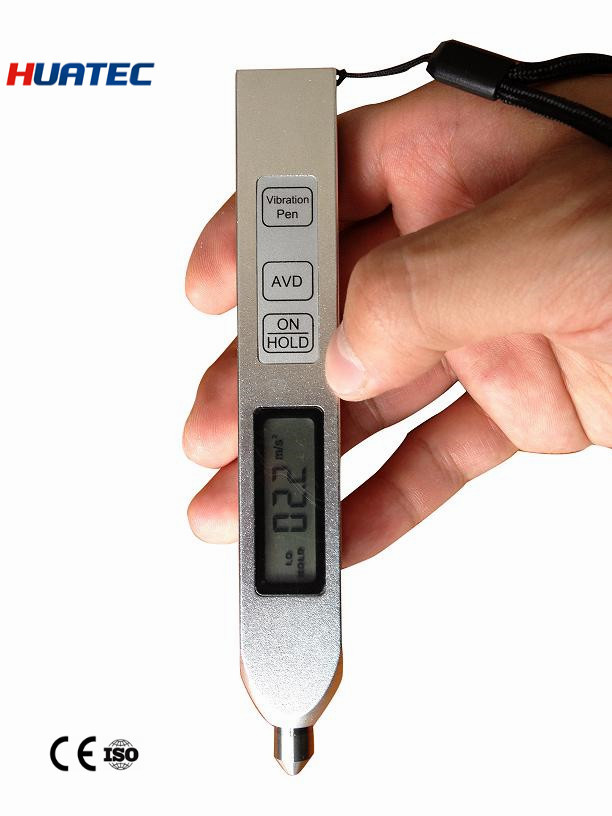

Compact Lightweight Vibration Meter Vibro Pen For Acceleration / Velocity Testing

  • Compact Lightweight Vibration Meter Vibro Pen For Acceleration / Velocity Testing
  • Compact Lightweight Vibration Meter Vibro Pen For Acceleration / Velocity Testing
  • Compact Lightweight Vibration Meter Vibro Pen For Acceleration / Velocity Testing
  • Compact Lightweight Vibration Meter Vibro Pen For Acceleration / Velocity Testing
Herkunftsort Peking
Markenname HUATEC
Zertifizierung ISO, CE, GOST
Modellnummer HG6430
Min Bestellmenge 1 Stück
Verpackung Informationen Standardpaket für die Ausfuhr
Lieferzeit 1-4days
Zahlungsbedingungen T/T, PayPal, Western Union
Versorgungsmaterial-Fähigkeit 500 Stück pro Monat

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

- Was ist?:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.

x
Produktdetails
Prüfparameter Beschleunigungs-, Geschwindigkeits- und Versatzprüfung Beschleunigung 0.1m/s2-199.9m/s2 (Spitze)
Geschwindigkeit 0.1 mm/s-199,9 mm/s ((RMS) Verlagerung 0.001mm-1.999mm (Spitze-Spitze)
Genauigkeit ±5% ± 2digits
Hervorheben

portable vibration meter

,

vibration analyzer
Hinterlass eine Nachricht
Produkt-Beschreibung

Compact Lightweight Vibration Meter For Acceleration / Velocity Testing

Features:
·Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on.

·Compact size, small weight, easy handling

·Prompt testing of vibration on the workshop machines

·For quick checking of unbalance misalignment, bearings and gears

·Guard against mechanical malfunction

·Holding tested value for 40 seconds

·Automatic switch off after 40 seconds

·HG6430 is used for acceleration, velocity and displacement testing

Technical Specifications:

Model

HG6430

Parameter

Acceleration, Velocity, Displacement

Testing range

Acceleration:0.1m/s2-199.9m/s2(peak)

Velocity: 0.1mm/s-199.9 mm/s(RMS)

Displacement: 0.001mm-1.999 mm (peak-peak)

Frequency range

Acceleration: 10Hz ~ 1kHz(LO)

            1kHz ~ 15kHz(HI)

Velocity: 10Hz ~ 1kHz

Displacement: 10Hz ~ 500Hz

Accuracy

±5% ± 2digits

Display

3 1/2 digits LCD

Power supply

two button batteries(LR44 or SR44)

Battery capacity

Approx. 5 hours working continuously

Operating temperature

0℃ ~ 40℃

Humidity

<85%

Dimension

150mm×22mm×16mm

Compact Lightweight Vibration Meter Vibro Pen For Acceleration / Velocity Testing 0
