dry film thickness gauge Coating Thickness Gauge TG8829F Magnetic Thickness Gauge

  • dry film thickness gauge Coating Thickness Gauge TG8829F Magnetic Thickness Gauge
  • dry film thickness gauge Coating Thickness Gauge TG8829F Magnetic Thickness Gauge
  • dry film thickness gauge Coating Thickness Gauge TG8829F Magnetic Thickness Gauge
  • dry film thickness gauge Coating Thickness Gauge TG8829F Magnetic Thickness Gauge
  • dry film thickness gauge Coating Thickness Gauge TG8829F Magnetic Thickness Gauge
  • dry film thickness gauge Coating Thickness Gauge TG8829F Magnetic Thickness Gauge
  • dry film thickness gauge Coating Thickness Gauge TG8829F Magnetic Thickness Gauge
Herkunftsort Peking
Markenname HUATEC
Zertifizierung ISO, CE, GOST
Modellnummer TG8829F
Min Bestellmenge 1 Stück
Verpackung Informationen Standardpaket für die Ausfuhr
Lieferzeit 1-4days
Zahlungsbedingungen T/T, PayPal, Western Union
Versorgungsmaterial-Fähigkeit 500 Stück pro Monat

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

- Was ist?:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.

x
Produktdetails
Hervorheben

oating thickness tester

,

coating thickness meter
Hinterlass eine Nachricht
Produkt-Beschreibung

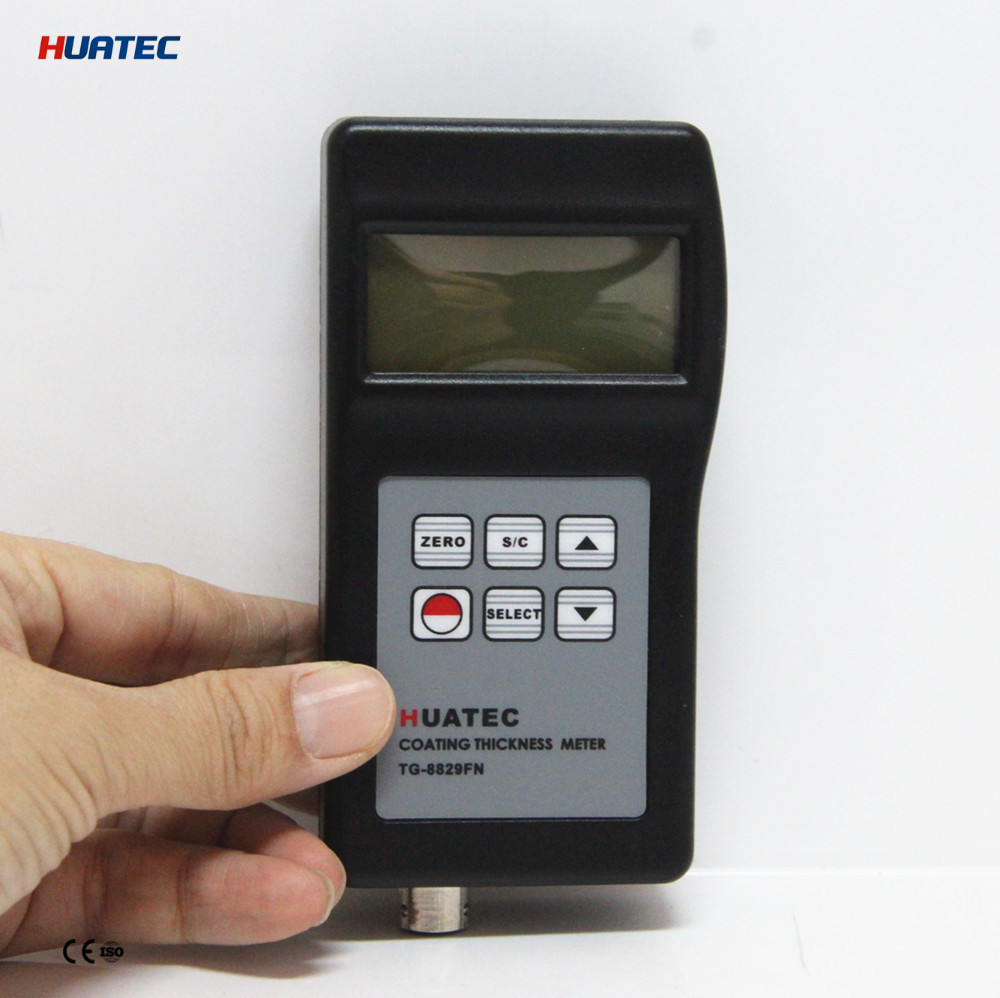

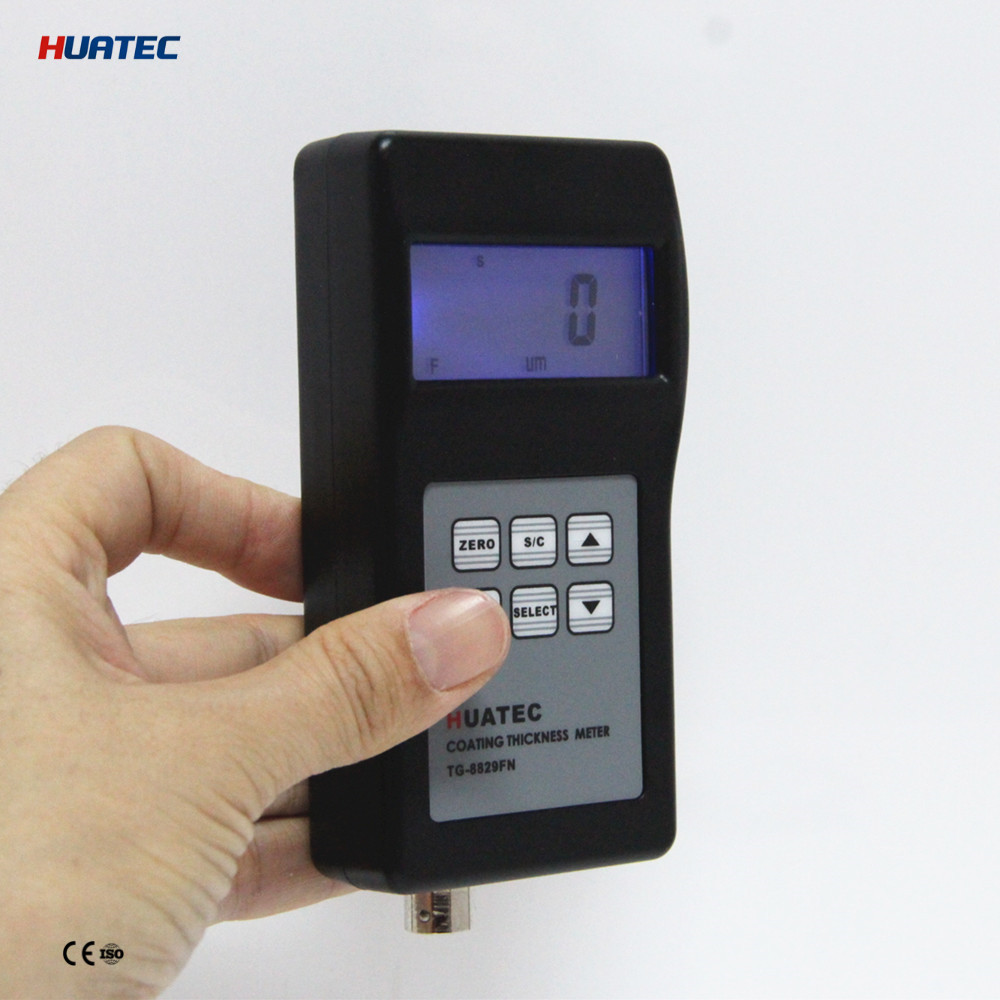

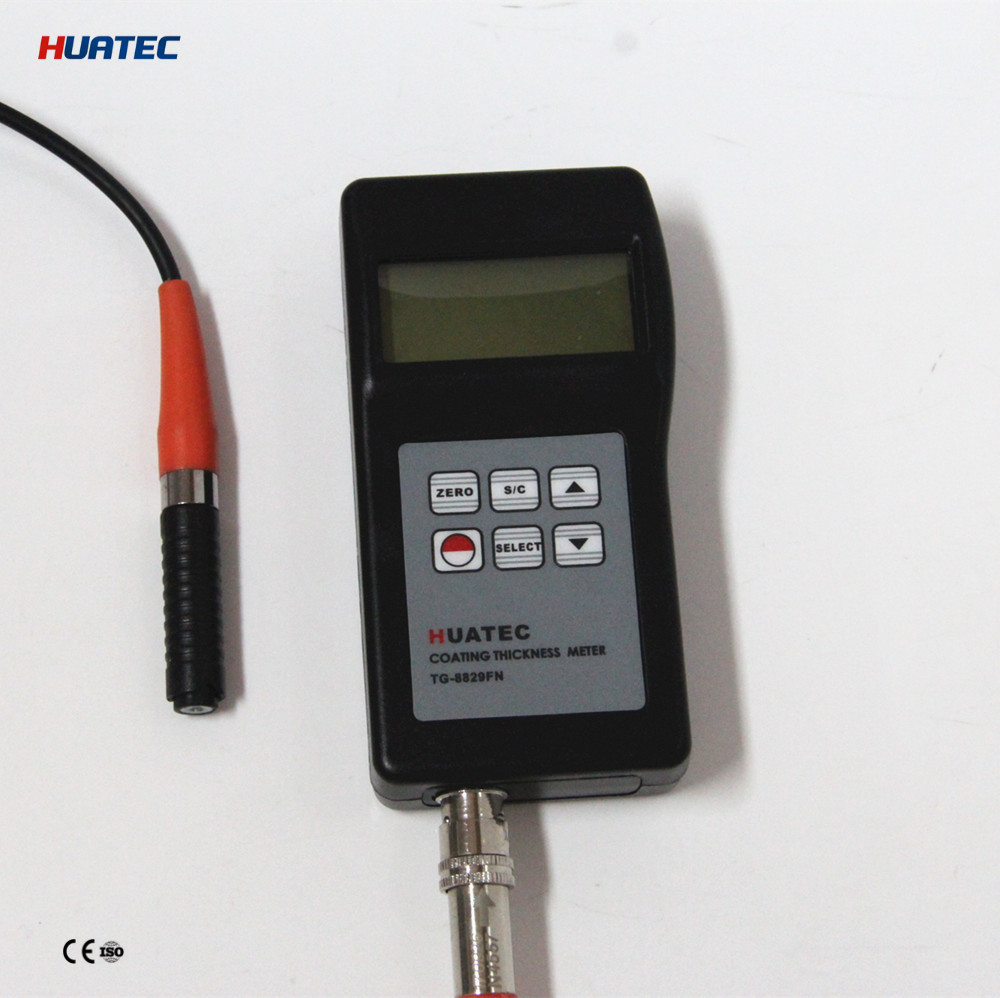

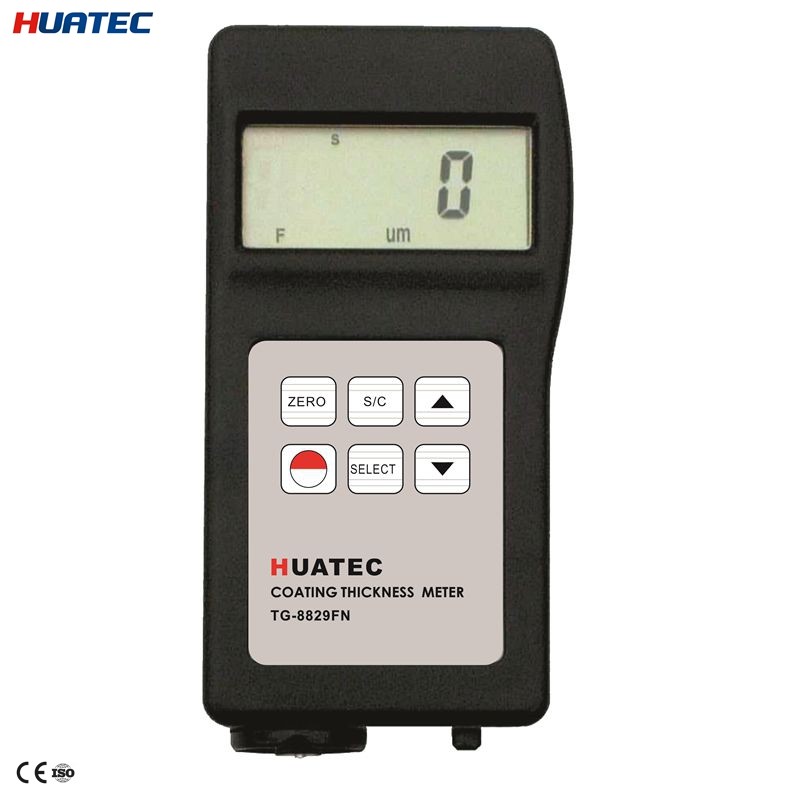

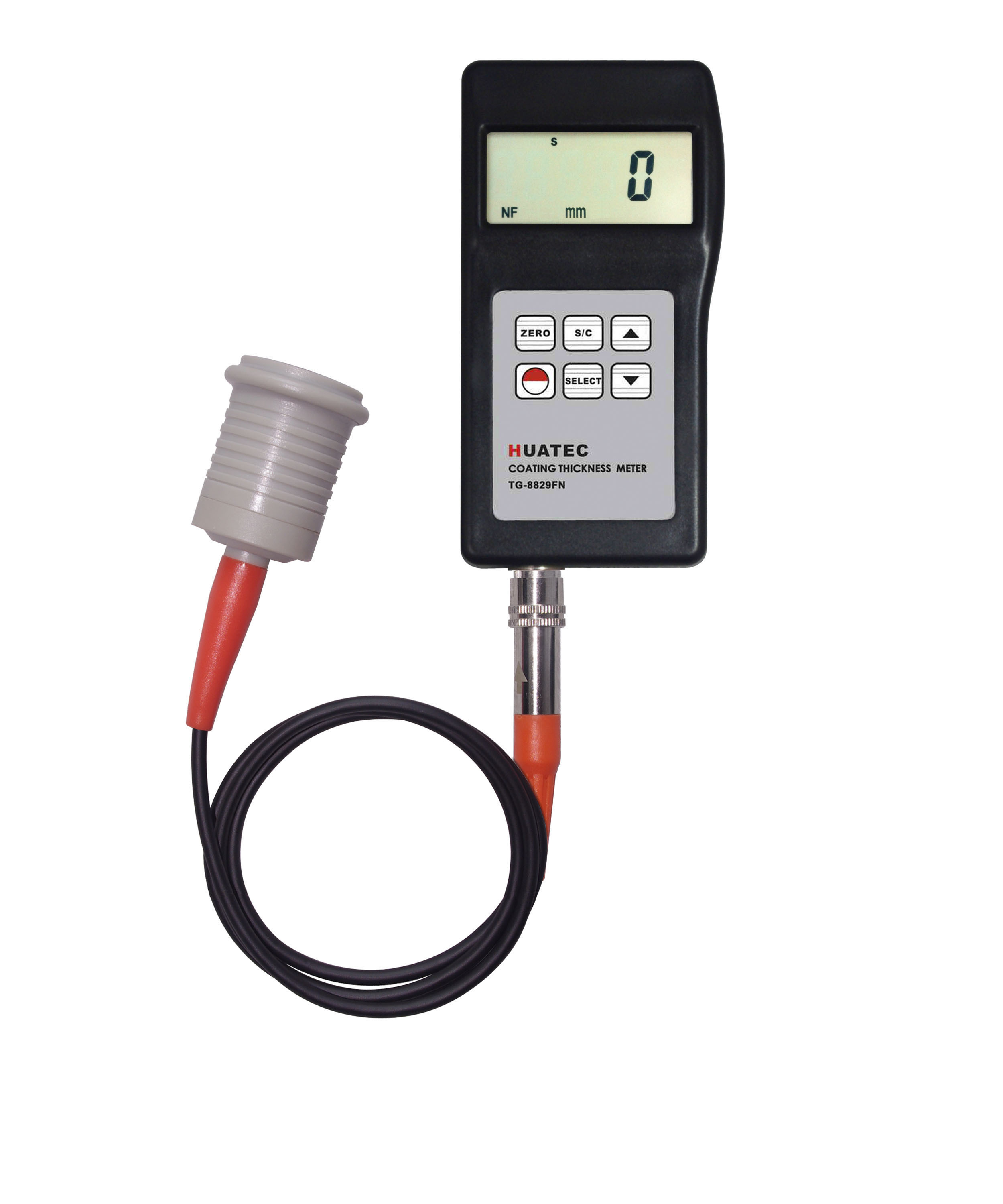

Dry Film Thickness Gauge Coating Thickness Gauge TG8829F Magnetic Thickness Gauge


Description:
With separate probe(s)
Function: TG-8829F (ferrous substrate)
Operating principle: magnetic induction
Measuring range:0-12000um/
Resolution; 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 30mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery
Auto power off
Operating conditions:0-+45℃(32℉-104℉), ≤90%RH
Dimensions: 126x65x27mm
weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um



Application:
1. TG-8829F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)

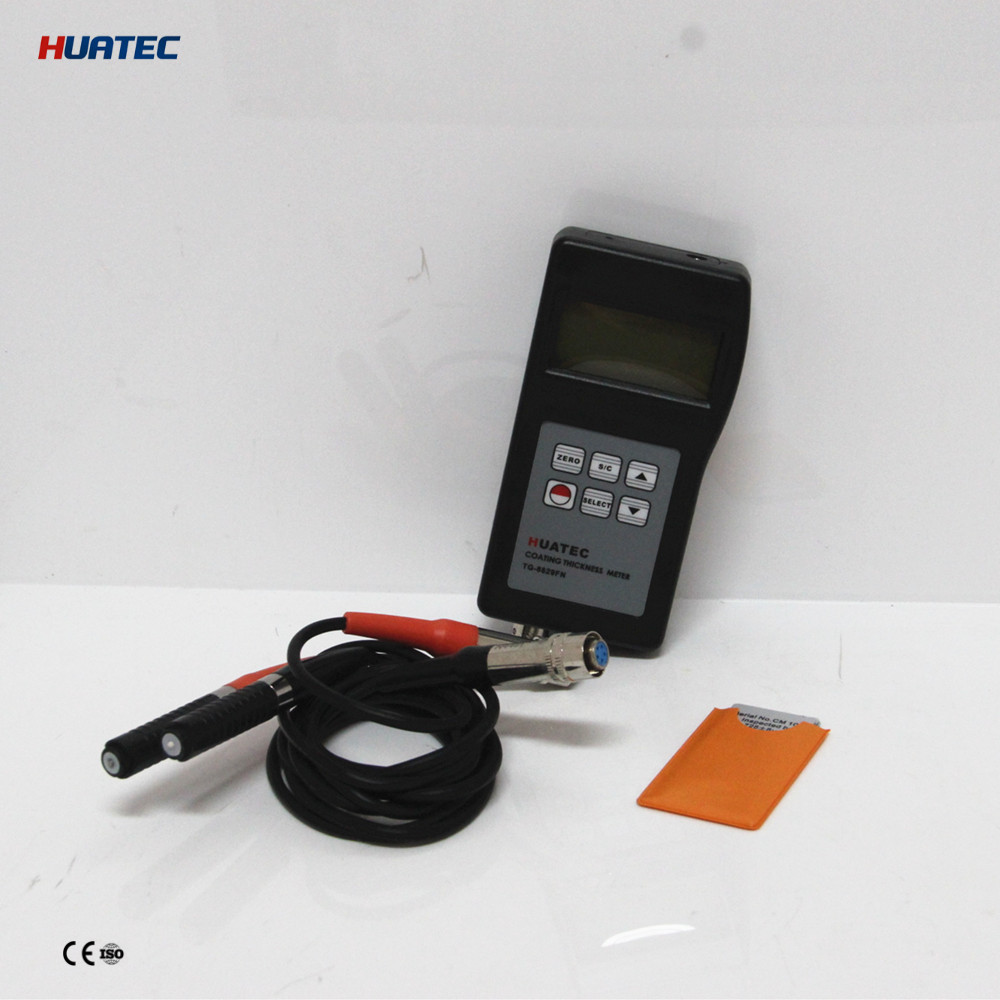

Standard Delivery of TG8829F:
Main unit(1250um)                        1
F type probe                                      1
F calibration base set                    1
Calibration foil set                         1set (4 foils)
Carrying case                                   1
Instruction manual                       1

Optional Accessories
Cable and software for RS-232C

Customized testing range upto 10mm
