Electric Brinell Hardness Tester Hbrv-187.5 , Industrial Hardness Testing Equipment

  • Electric Brinell Hardness Tester Hbrv-187.5 , Industrial Hardness Testing Equipment
Herkunftsort China
Markenname HUATEC
Zertifizierung ISO CE
Modellnummer HBRV-187.5
Min Bestellmenge 1
Verpackung Informationen in Karton
Zahlungsbedingungen T/T, Western Union
Versorgungsmaterial-Fähigkeit 500

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

- Was ist?:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.

x
Produktdetails
Anfangstestkraft 98.07N ((10kg) Zulage ± 2,0% Gesamttestkraft 98.07N ((10kg) ~1839N ((187,5kg) Zulage:±1,0%
Brinell-Prüfkraft 31.25kgf ((306.5N)62.5kgf ((612.9N)187.5kgf ((1839N) Brinell-Skala HBW2.5/31.25│HBW2.5/62.5、 HBW2.5/187.5、HBW5/62.5
Spezifikationen für Diamant-Eindringmaschinen Diamant-Rockwell-Eindringe, Diamant-Vickers-Eindringe
Hervorheben

portable brinell hardness tester

,

rockwell superficial hardness tester
Hinterlass eine Nachricht
Produkt-Beschreibung

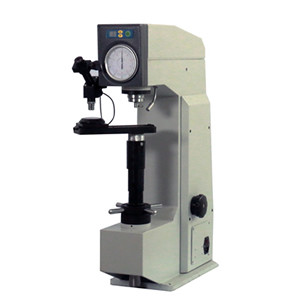

Electric Brinell/Vickers/Rockwell Hardness Tester HBRV-187.5



quenching steel, carbide steel, cast iron, non-ferrous metals,various types of tempered and annealed steel, hardened thin steel plates, also suitable for flexible metals, surface heat treatment and chemical heat treatment, etc., are Hardness testing machines in industrial and mining enterprises and scientific research institutes.

  • Three test methods of Brinell, Rockwell and Vickers are available.
  • The multifunctional hardness tester of the seven-level test force can meet the requirements of the user's various hardness tests.
  • Rockwell hardness reading dial pointer display ,Brinell l and Vickers lookup
  • The application of test force, loading and unloading of load are automatically completed
  • The wide range of application and convenient operation
Product Model HBRV-187.5E
Initial test force 98.07N(10kg) allowance±2.0%
Total test force 98.07N(10kg)~1839N(187.5kg) allowance:±1.0%
Brinell test force 31.25kgf(306.5N),62.5kgf(612.9N),187.5kgf(1839N)
Brinell scale HBW2.5/31.25,HBW2.5/62.5, HBW2.5/187.5,HBW5/62.5
Diamond Indenter Specifications Diamond Rockwell Indenter,Diamond vickers Indenter
Steel ball Indenter specifications φ1.5875mm,φ2.5mm,φ5mm Steel ball Indenter
Rockwell test force 60kgf(588N) 100kgf(980.7N) 150kgf(1471N)
Rockwell scale HRA HRB HRC HRD HRE HRF HRG HRK HRH
Vickers test force 30kgf(294.2N) 100kgf(980.7N)
Vickers scale HV30 HV100
Minimum unit of measurement Brinell:0.004mm Vickers:0.002mm
Microscope magnification 37.5x,75x
Rockwell maximum test height 260mm
Brinell,Vickers maximum test height 200mm
Durating time 2~60s
Rockwell hardness test range 20HR~100HR
Vickers hardness test range 8HV~2900HV
Vickers harness test range 8HBW~650HBW
Power AC220+5%,50~60Hz
Shape Size(mm) 540×230×820mm
Host Weight 80kg



Standard Configuration

Name Quantity Name Quantity
Rockwell Headers 1 φ1.5875,2.5,5mmHard alloy ball 1
Vickers Indenter 1 Fuse2A 2
Measurement microscope 1 Headlamp 1
Hardness block 5 Large, medium and V test stations 1
Power cord 1 Slide the test platform 1
Objective lens 2 Product specifications 1



Our factory provides a variety of types of hardness tester, as well as customize non-standard hardness tester, automated detection solutions.
