HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use

  • HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use
  • HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use
  • HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use
  • HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use
  • HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use
  • HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use
  • HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use
  • HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use
  • HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use
  • HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use
  • HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use
  • HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use
  • HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use
  • HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use
Herkunftsort Peking
Markenname HUATEC
Zertifizierung ISO, CE, GOST
Modellnummer HGS911HD
Min Bestellmenge 1 Stück
Verpackung Informationen Standardpaket für die Ausfuhr
Lieferzeit 1-4days
Zahlungsbedingungen T/T, PayPal, Western Union
Versorgungsmaterial-Fähigkeit 500 Stück pro Monat

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

- Was ist?:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.

x
Produktdetails
Geräuschpegel (ohne Erschütterungsinput) Bei der Prüfung der Einhaltung der in Absatz 1 genannten Anforderungen ist der Prüfstand zu prüfen, Frequenzganggenauigkeit 5% + 2 Stellen
Nichtlinearität 5% + 2 Stellen Betriebstemperaturbereich 0 - 50 °C
AUFNAHME Beschleunigungsmesser mit Verlängerungsstich und Magnethalter, optionale Tachosensor Rotationsdrehzahlmessungsstrecke 10-60000 U/MIN
Aufbewahrung 200 Sätze von Identifikation, von Beschleunigung, von Geschwindigkeit, von Verschiebung, von Umschla Größe 150 x 70 X.25 (Millimeter)
Gewicht 320 g (einschließlich Batterie)
Hervorheben

portable vibration meter

,

digital vibration meter
Hinterlass eine Nachricht
Produkt-Beschreibung

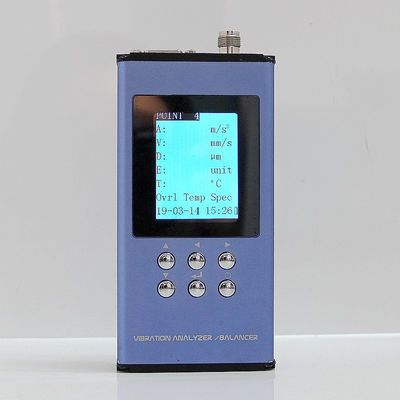

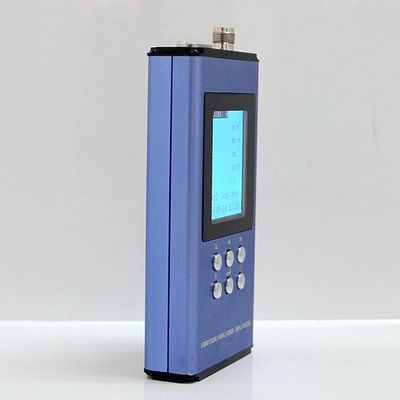

HGS911HD Balancer / Vibration Spectrum Analyzer / Data Collector



HGS911HD is an easy operate and small sized economical vibration Spectrum analyzer & data collector. It can be used for overall vibration measurement, spectrum analysis and measurement of high frequency acceleration envelope design makes it very effective for bearing fault detection. HGS911HD testing data can be outputed to computer for database and trending analysis.

It is also a low-cost, easy-to-use balancing meter with the measurement of Amplitude,Rotation speed RPM, & Phase measurement.

HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use 0

Features:

Easy to use FFT spectrum analyzer, 400 lines

Measurement of high frequency acceleration envelope makes it a very effective bearing fault detector

Download from computer database point / location ID & upload overall value to database for trending

Powerful standard condition monitoring software

Parameter selection of Acceleration, velocity, displacement and acceleration envelope for FFT.

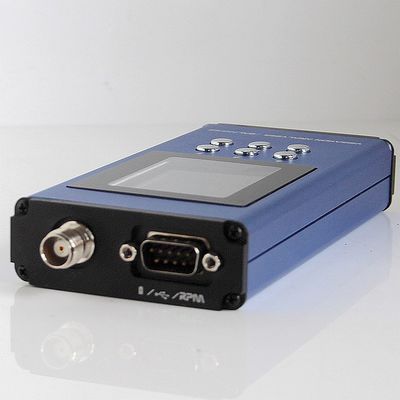

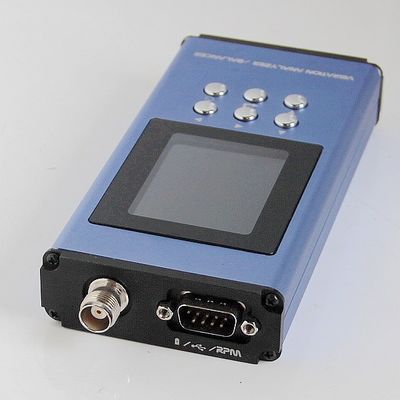

USB 2.0 interfaces to computer

Date/Time & Battery Status Display

True RMS measurement

RPM, Amplitude, Phase measurement for balancing



Specification:



 Maximum measurement range / Resolution / frequency range (may change):

Parameter

Maximum

Measurement Range

Maximum

Resolution

 Frequency Range
Displacement Peak-Peak value 2 mm 1 micron 10 – 500Hz
Velocity RMS value 200mm/s 0.1 mm/s 10 – 1000Hz
Acceleration Peak value 180m/s2 0.1 m/s2 10 – 15000Hz
High Frequency Acceleration Envelope 20unit 0.1unit 5Hz-2kHz #



# Note: Demodulated from 15kHz-40kHz

Accuracy of vibration measurement:

Noise Level (without vibration input): ACC<0.25 m/s2, VEL<0.5mm/s, Disp<1mm

Non-linearity: ±5% + 2 digits

Frequency response accuracy: ±5% + 2 digits

Rechargeable Li-ion battery, Automatic power off, >20 hours operation time

Operation temperature range: 0 - 50°C

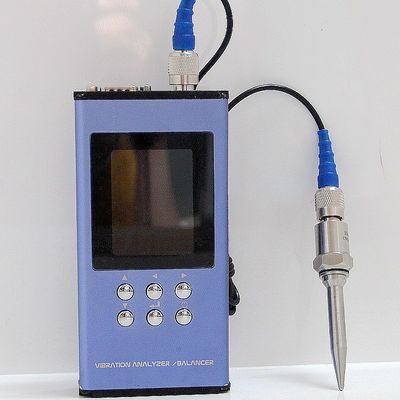

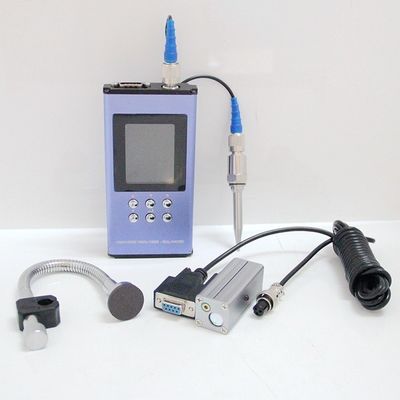

Pickup: Accelerometer with extension stinger and magnetic mount,

Optional tacho-sensor Optional 1 or 2 accelerometers. For 2 accelerometers, a mechanical switch provided.

Rotation speed measurement range: 10-60000 RPM

Storage: 200 sets of ID, acceleration, velocity, displacement, envelope & spectrum

Size: 150 x 70 x 25 (mm)

Weight: 320 gram (including battery)

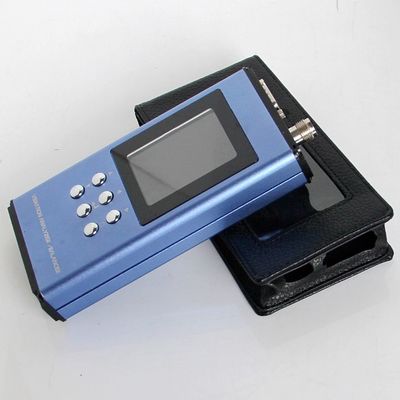

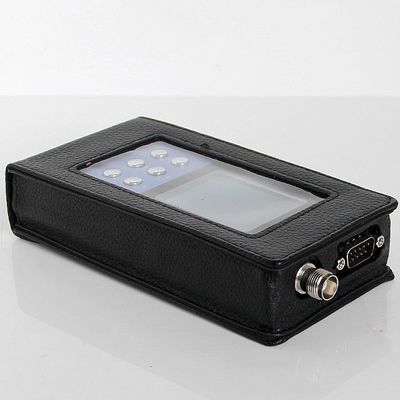

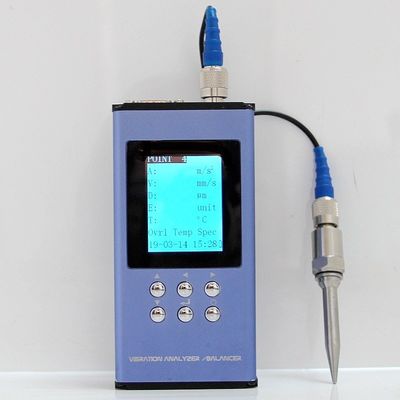

HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use 1HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use 2HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use 3HGS911HD Vibration Balancer With USB 2.0 Interface / FFT Spectrum Analyzer Easy To Use 4



Trouble-Shooting



Symptom Trouble-shooting
The magnetic mount has no attraction force Take off the protective iron cover on the bottom of the magnetic mount.
Cannot power on.

1. Press and hold the On button for around 5 seconds then release;

2. The voltage of the battery may be low. Recharge the battery.
Spurious point name appears

1. Format the memory

2. The battery voltage may be low. Recharge battery and power on again.
Measurements not stable
  1. The accelerometer cable does not connect well, firm it at both ends;
  2. There exists short circuit or break in the accelerometer cable.
Communication fault
  1. The communication cable does not connect well, firm it at both ends;
  2. Wrong model type selected in HUATEC Wave software, re-select the model HGS911HD
  3. Computer software faults. Re-install HUATEC Wave or scan for virus.





If other faults are found, make detailed records and contact HUATEC Group Corporation, www.huatecgroup.com.



Maintenance



Battery Charging



Rechargeable battery is used in HUAEC Group HGS911HDD data collector. It will take several hours to fully charge the battery and then it will be ready for >20 hours of continuous operation.



Calibration



HUAEC Group HGS911HD and accelerometer should be calibrated periodically. The cycle of calibration is normally one year.
