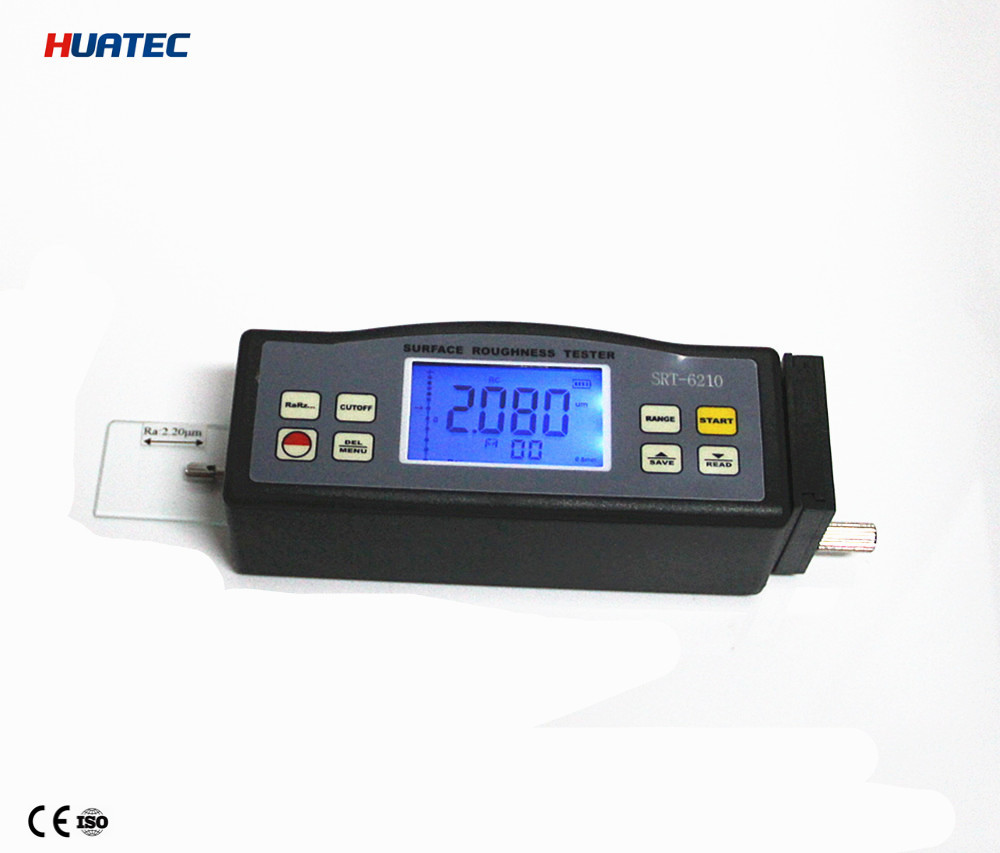

Highly sophisticated inductance sensor Surface Roughness Tester SRT6210 with 10mm LCD

  • Highly sophisticated inductance sensor Surface Roughness Tester SRT6210 with 10mm LCD
  • Highly sophisticated inductance sensor Surface Roughness Tester SRT6210 with 10mm LCD
  • Highly sophisticated inductance sensor Surface Roughness Tester SRT6210 with 10mm LCD
  • Highly sophisticated inductance sensor Surface Roughness Tester SRT6210 with 10mm LCD
  • Highly sophisticated inductance sensor Surface Roughness Tester SRT6210 with 10mm LCD
  • Highly sophisticated inductance sensor Surface Roughness Tester SRT6210 with 10mm LCD
  • Highly sophisticated inductance sensor Surface Roughness Tester SRT6210 with 10mm LCD
  • Highly sophisticated inductance sensor Surface Roughness Tester SRT6210 with 10mm LCD
Herkunftsort Peking
Markenname HUATEC
Zertifizierung ISO, CE, GOST
Modellnummer SRT6210
Min Bestellmenge 1 Stück
Preis 600-800USD
Verpackung Informationen Standardpaket für die Ausfuhr
Lieferzeit 1-4days
Zahlungsbedingungen T/T, PayPal, Western Union
Versorgungsmaterial-Fähigkeit 500 Stück pro Monat

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

- Was ist?:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.

x
Produktdetails
Hervorheben

surface finish tester

,

surface roughness meter
Hinterlass eine Nachricht
Produkt-Beschreibung

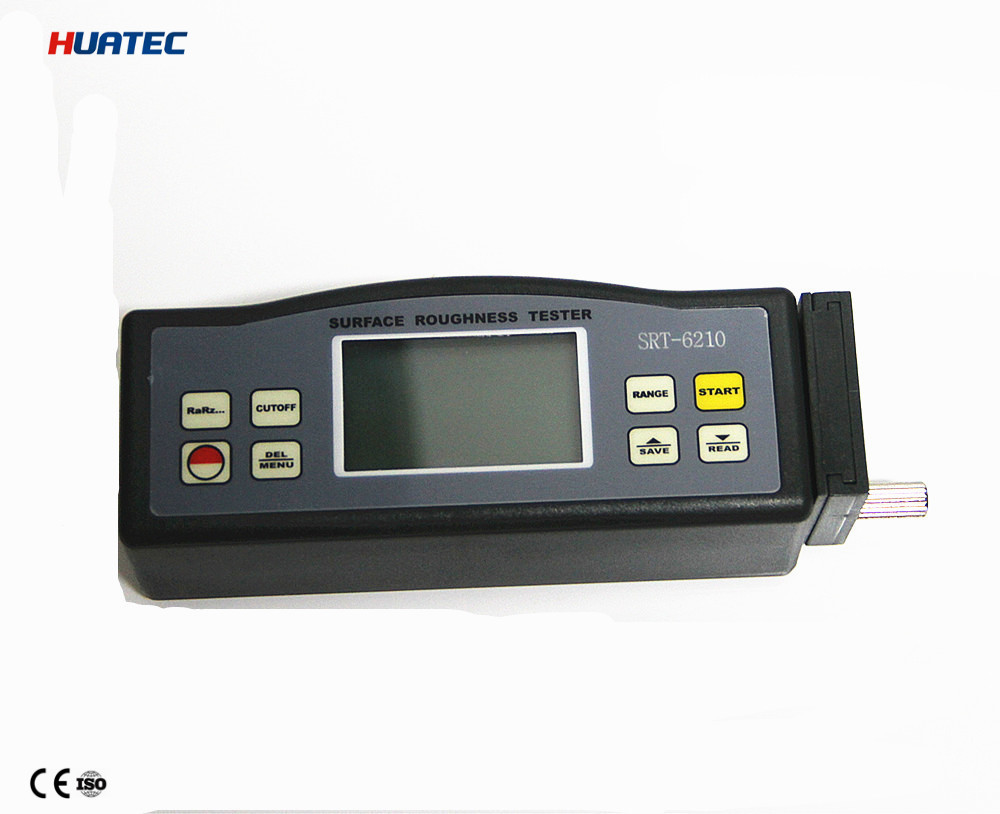

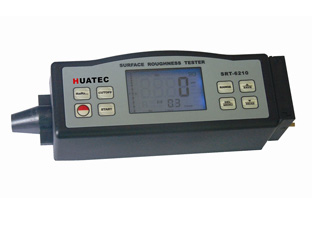

Digital Surface Roughness Tester SRT6210
Key words:portable roughness tester, roughness ra, surface roughness, surface finish, roughness tester mitutoyo, roughness testing machine, surface finish tester, surface roughness tester manufacture, roughness testing machine manufacture

Features:
Surface roughness tester SRT6210 is compatible with four standards of site to measure surface roughness of various machinery-processed parts, calculate corresponding and clearly display all measurement parameters. When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier.
The exclusive DSP processes and calculates and then outputs the measurement results on LCD.
* Multiple parameter measurement: Ra, Rz, Rq, Rt
* Highly sophisticated inductance sensor
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P
* Built-in lithium ion rechargeable battery and control circuit with high capacity
* Small in size, light in weight and easy to use
* Can communicate with PC computer for statistics, printing and analyzing by the optional cable and the software for RS232C interface.
*Manual or automatic shut down. The tester can be switched off  by pressing  the Power key at any time. On the other hand, the tester will power itself off about 5 minutes after the last  key operation.
*The tester can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
*Metric /Imperial Conversion


Specifications:
Display: 4 digits, 10 mm LCD, with blue backlight
Parameters:  Ra, Rz, Rq, Rt
Measuring Range
           Ra, Rq:  0.005-16.00um/0.020-629.9uinch
           Rz, Rt:   0.020-160.0um/0.078-6299uinch
Accuracy: Not more than 10%
Fluctuation of display value: Not more than 6%
Sensor :
         Test Principle: Inductance type
         Radius of Probe Pin: 5µm
         Material of Probe Pin: Diamond
         Dynamo-measurement of Probe: 4mN(0.4gf)
         Probe Angle: 90º
         Vertical Radius of Guiding Head: 48mm
Maximum driving stroke:  17.5mm/0.7inch
Cutoff length (l): 0.25mm / 0.8mm / 2.5mm  optional
Evaluation length:  1-5L
Driving speed:
         sampling length = 0.25mm  Vt=0.135mm/s
         sampling length = 0.8mm    Vt=0.5mm/s
         sampling length = 2.5mm    Vt=1mm/s
         returning                             Vt=1mm/s
Profile digital filter
         Filtered Profile:            RC
         Filtered Profile:            PC-RC
         Filtered Profile:            Gauss
         Non-Filtered Profile:    D-P
Resolution :
Evaluation length :      5 cut-off
Power Li-ion battery:   rechargeable
Operating conditions:  Temp. 0~50℃
                                    Humidity <80%
Size:                          140x57x48 mm  (5.5x2.2x1.9 inch)

Weight:                       about 420 g

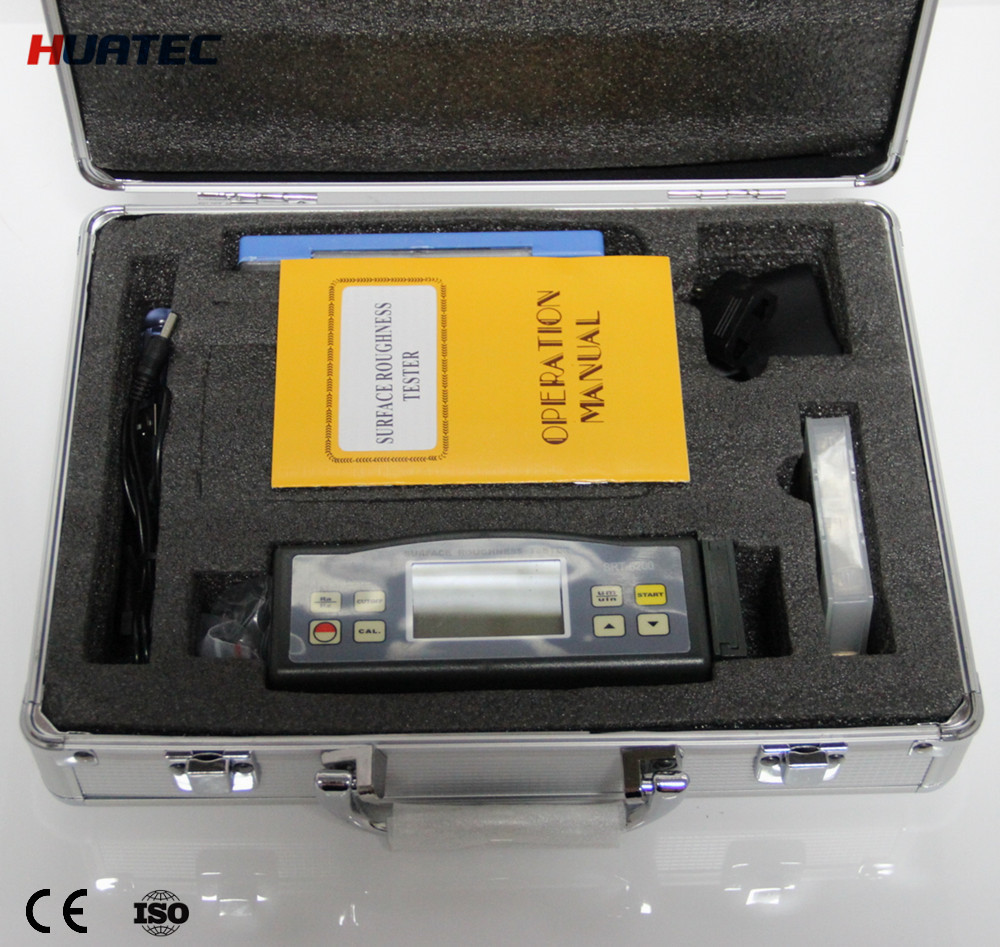

Standard Delivery of surface roughness tester SRT6210:
Main Unit                       1
Carrying Case               1
Standard Sensor           1
Standard Sample Plate  1
Power Adapter              1
Operation Manual          1
Screwdriver                    1
Adjustable Leg               1
Sensor Protector            1

Optional Accessories of surface roughness tester SRT6210:
Cable and Software for RS-232
Extension Rod
Measurement Support
Special pick-up for grooves, bores and holes
