Metallurgical Micro Vickers Hardness Tester , High Rotate Speed Cutting Machine







Description:

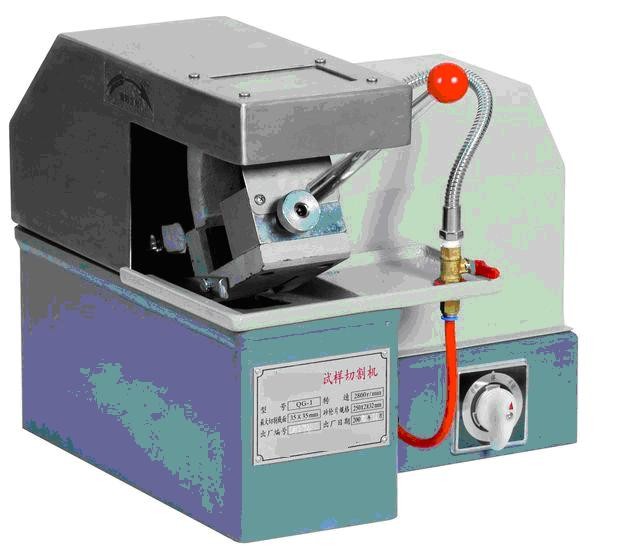

QG-1 Metallurgical Sample Cutter can do the first stage work of metallurgical sample preparation.High speed rotating thin grinding wheel is used to cut samples.Preventing from heat damaging the sample,QG-1 is equipped with cooling system.QG-1 operates easily,and is expediently maintained.QG-1 is better than the same product in China.

Main  parameters
Maximum Sample Section:35×35mm
Grinding wheel Size:250×2×32mm
Rotate Speed:2800rpm
Electromotor:Y802-2 1.2kW 380V 50Hz
The Total Dimensions:650×400×350mm
The Net Weight:55Kg

Name:QG-1 50x50

Metallurgical Micro Vickers Hardness Tester , High Rotate Speed Cutting Machine 0

Description:

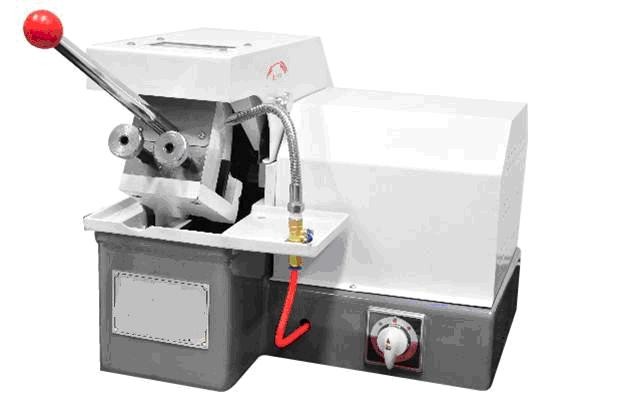

　QG-1 Metallurgical Sample Cutter can do the first stage work of metallurgical sample preparation.High speed rotating thin grinding wheel is used to cut samples.Preventing from heat damaging the sample,QG-1 is equipped with cooling system.QG-1 operates easily,and is expediently maintained.QG-1 is better than the same product in China.

Main parameters
Maximum Sample Section:50×50mm
Grinding wheel Size:300×2×32mm
Rotate Speed:2800rpm
Electromotor:Y90L-2 2.6kW 380V 50Hz
The Total Dimensions:740×465×390mm
The Net Weight:70Kg
