Pocket Thickness Gauge Ultrasonic Thickness Measurement for Steel plate Pipe wall thickness

  • Pocket Thickness Gauge Ultrasonic Thickness Measurement for Steel plate Pipe wall thickness
  • Pocket Thickness Gauge Ultrasonic Thickness Measurement for Steel plate Pipe wall thickness
  • Pocket Thickness Gauge Ultrasonic Thickness Measurement for Steel plate Pipe wall thickness
  • Pocket Thickness Gauge Ultrasonic Thickness Measurement for Steel plate Pipe wall thickness
  • Pocket Thickness Gauge Ultrasonic Thickness Measurement for Steel plate Pipe wall thickness
  • Pocket Thickness Gauge Ultrasonic Thickness Measurement for Steel plate Pipe wall thickness
  • Pocket Thickness Gauge Ultrasonic Thickness Measurement for Steel plate Pipe wall thickness
Herkunftsort Peking
Markenname HUATEC
Zertifizierung ISO, CE, GOST
Modellnummer TG-2930
Min Bestellmenge 1 Stück
Verpackung Informationen Standardpaket für die Ausfuhr
Lieferzeit 1-4days
Zahlungsbedingungen T/T, PayPal, Western Union
Versorgungsmaterial-Fähigkeit 500 Stück pro Monat

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

- Was ist?:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.

x
Produktdetails
Messbereich 1mm-200mm Produktbezeichnung Rohrdickheitsmessung
Entschließung 0.1 mm Stromversorgung 1.5V AAA*4PCS
Schallgeschwindigkeitsbereich 1000 bis 9999 m/s.
Hervorheben

digital ultrasonic thickness gauge

,

through coating thickness gauge
Hinterlass eine Nachricht
Produkt-Beschreibung

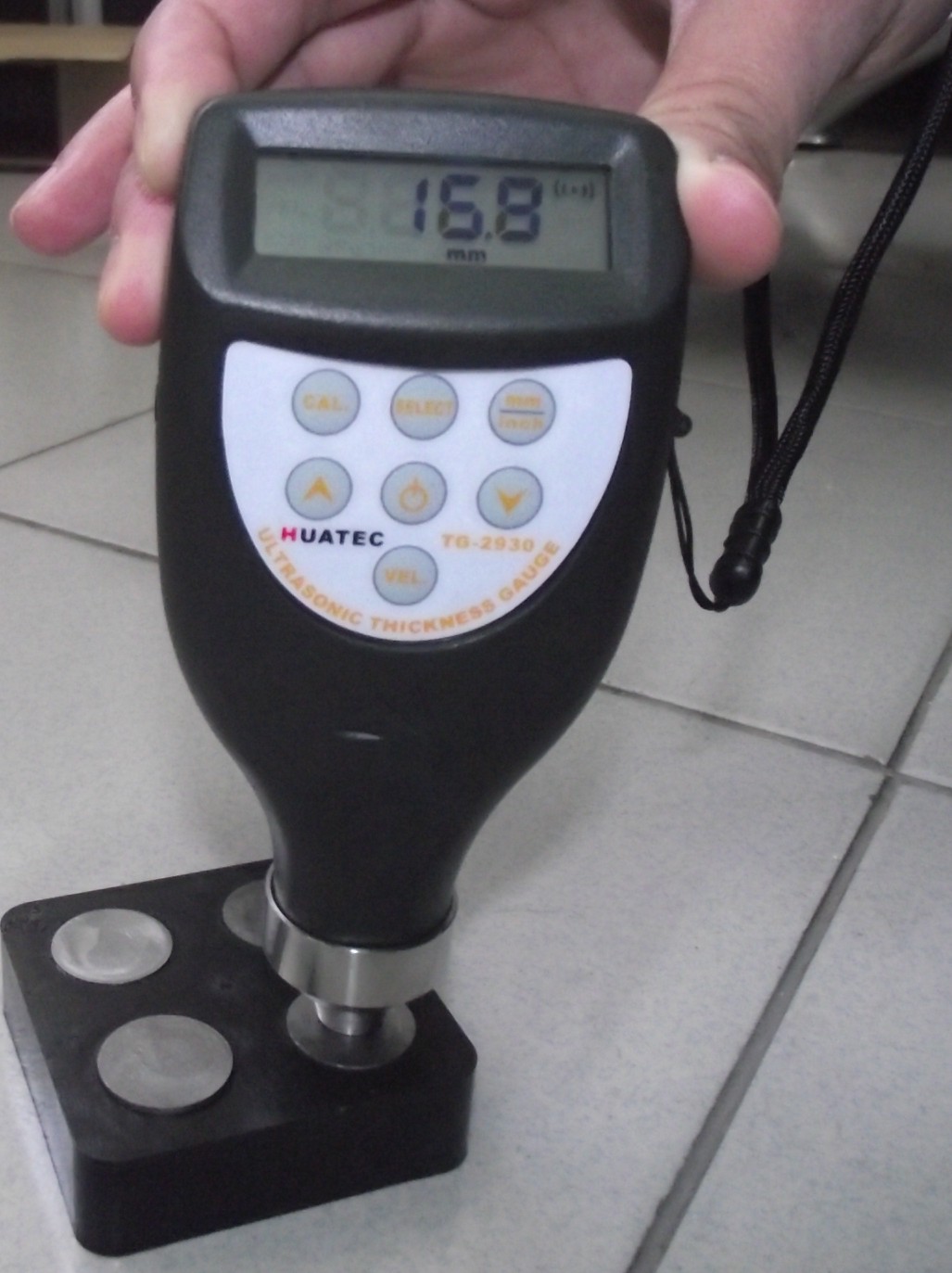

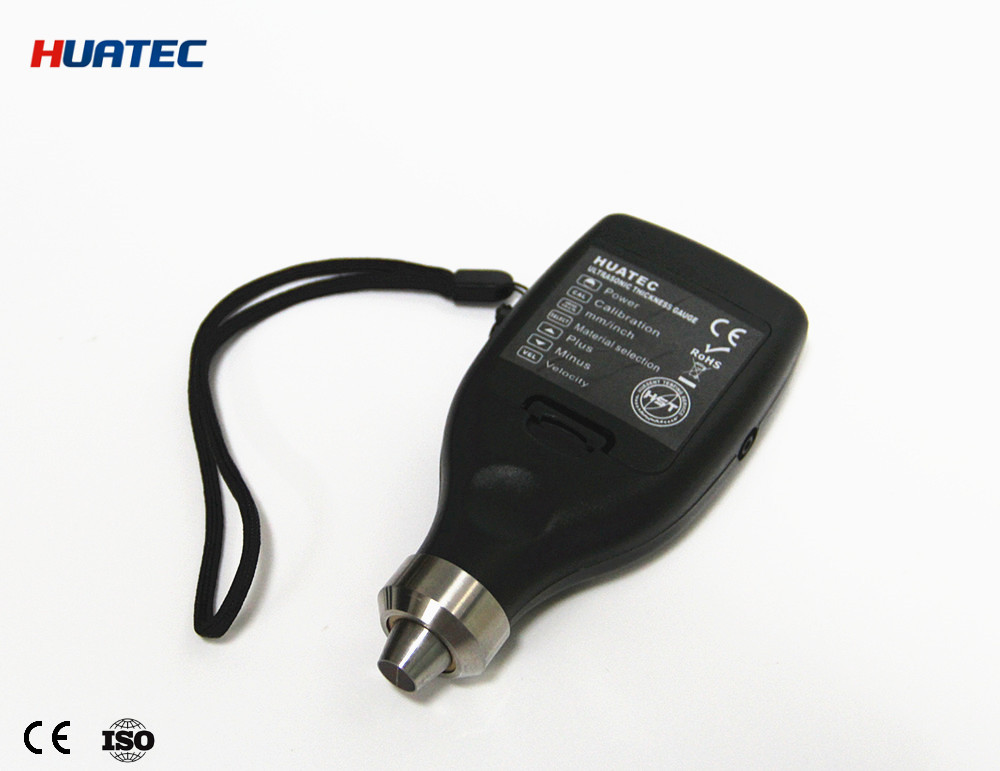

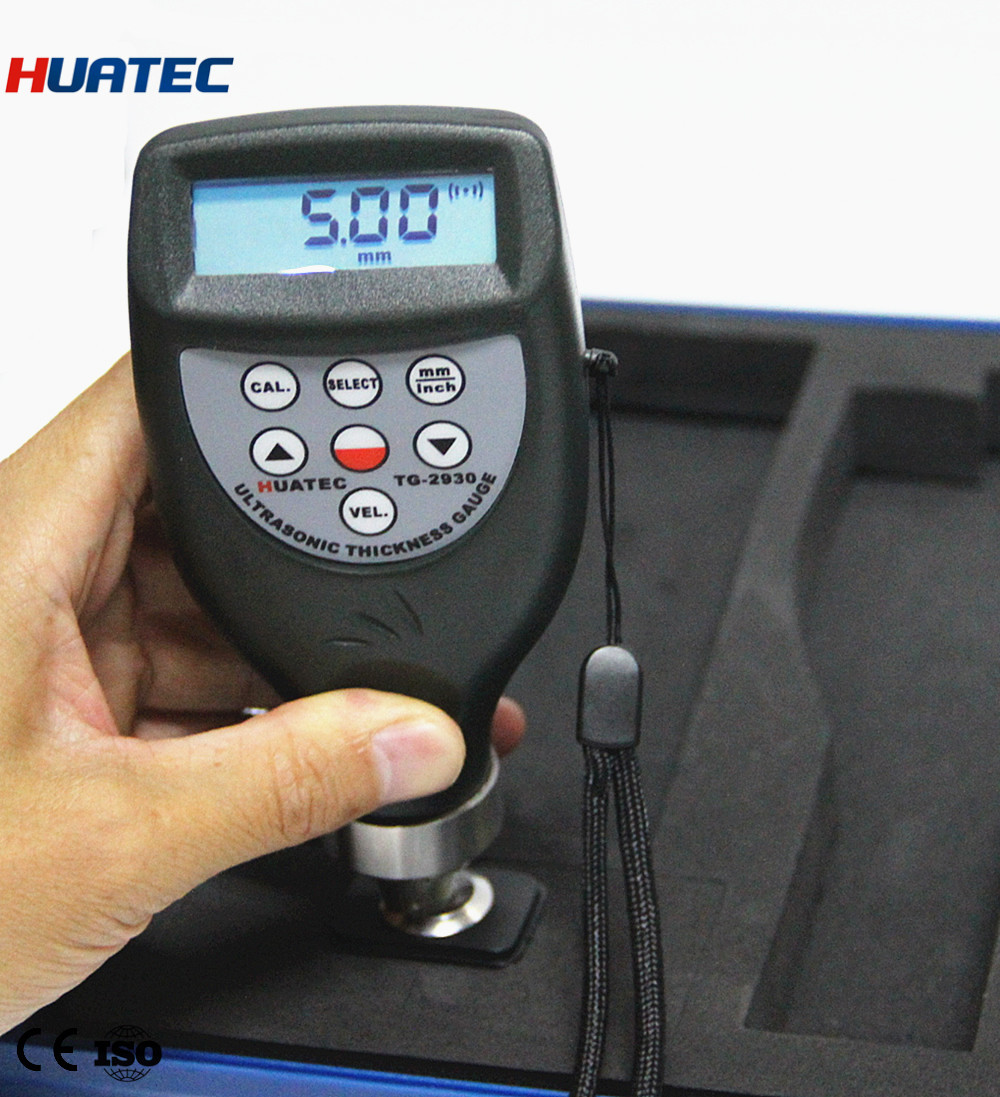

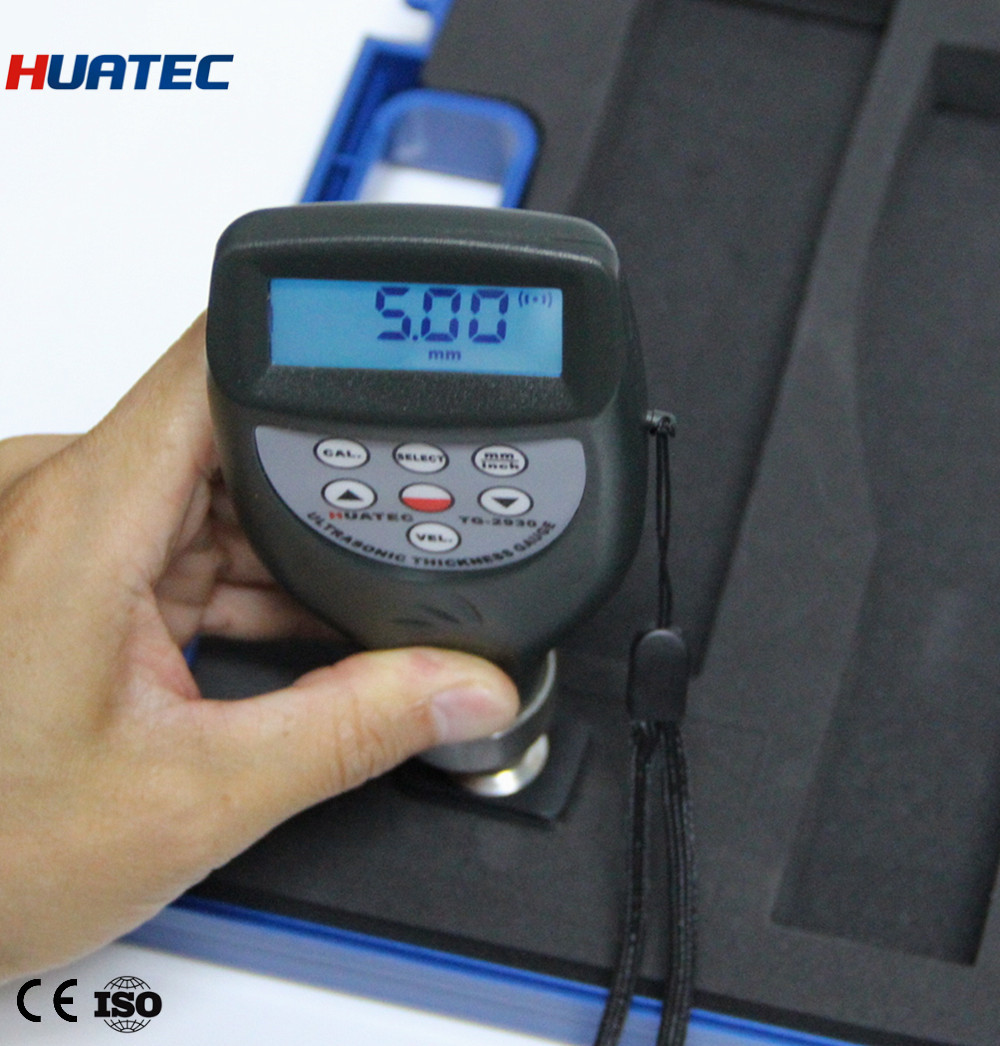

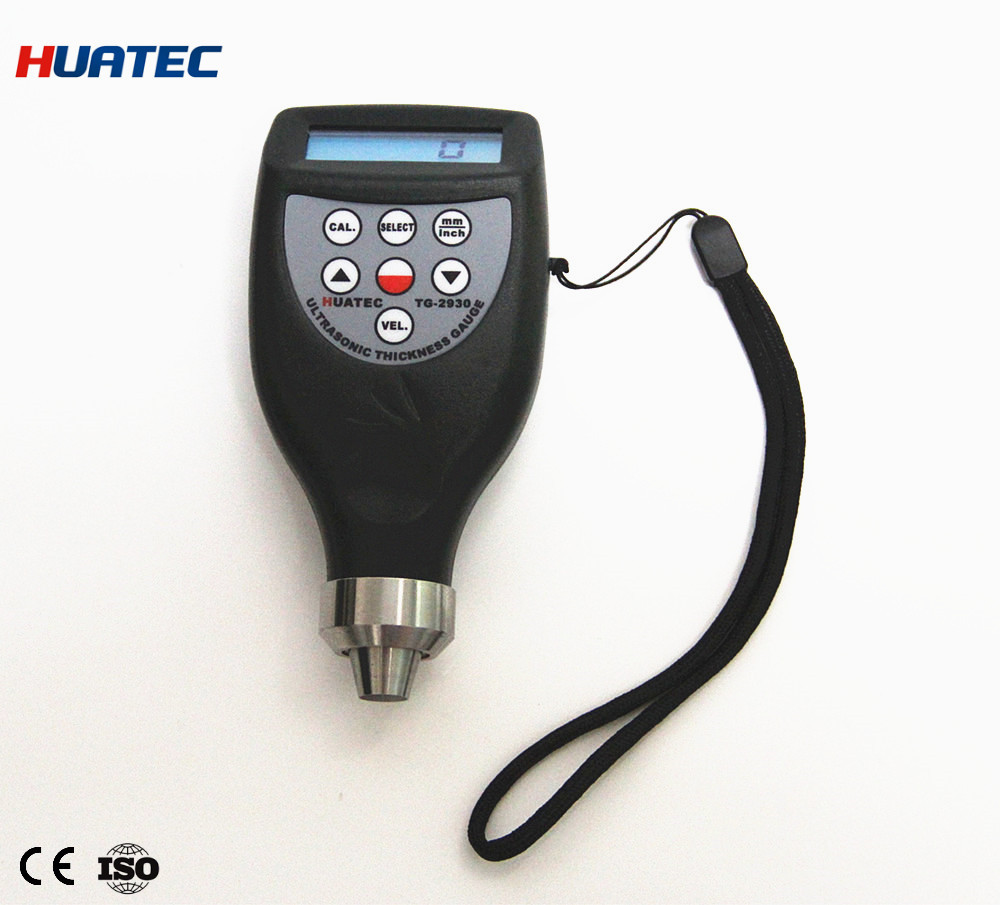

Ultrasonic Probe Ultrasonic Thickness Measurement for Chemical Equipment



Special design: inbuilt probe, without cable



Application:

 Ultrasonic thickness gauge TG-2930 is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc.in industries of petroleum, shipbuilding, power station, and machine manufacturing.

Measuring range (metric/imperial): 1.0-200mm, 0.05-8inch

Operating principle: ULTROSONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer

Calibration block: included

Display: 5 digits LCD with EL backlight

Resolution: 0.1mm or 0.01mm

Accuracy: ±(0.5%H+0.1)

RS232C interface: with RS232C

Power supply: 4x1.5V AAA (UM-4)battery

Battery indicator: low battery indicator

Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 126x65x27mm

Weight: 81g(not including battery)

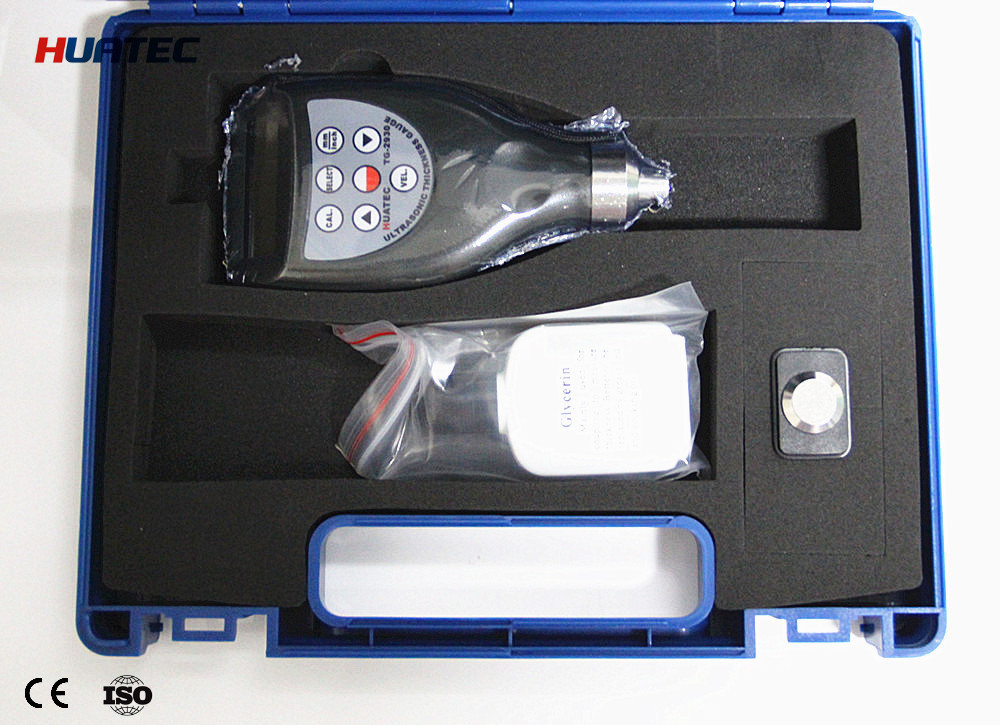

Standard Delivery

Main unit                                                  1
5M Φ8 Transducer  inbuilt               1
Couplant  bottle                                     1
Carrying case                                          1
Instruction manual                               1



Optional Accessories

Cable and Software for RS232C interface





Pocket Thickness Gauge Ultrasonic Thickness Measurement for Steel plate Pipe wall thickness 0



Sound velocity

Platinum 0.130 3300
Plexiglass 0.110 1700
Polyethylene 0.070 1900
Polystyrene 0.0930 2400
Polyurethane 0.0700 1900
Quartz 0.230 5800
Rubber, Butyl 0.070 1800
Silver 0.140 3600
Steel, Mild 0.232 5900
Steel, Stainless 0.230 5800
Teflon 0.060 1400
Tin 0.130 3300
Titanium 0.240 6100
Tungsten 0.200 5200
Uranium 0.130 3400
Water 0.584 1480
Zinc 0.170 4200
