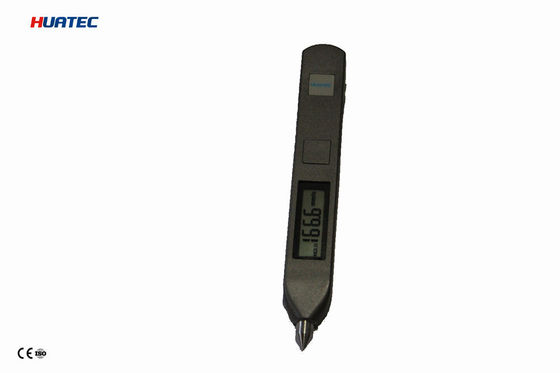

Digital Vibration Portable 10Hz - 1kHz Vibration Meter HG-6400 For pump, air compressor

Herkunftsort Peking
Markenname HUATEC
Zertifizierung ISO, CE, GOST
Modellnummer HG-6400
Min Bestellmenge 1 Stück
Preis 90-200
Verpackung Informationen Standardpaket für die Ausfuhr
Lieferzeit 1-4days
Zahlungsbedingungen T/T, PayPal, Western Union
Versorgungsmaterial-Fähigkeit 500 Stück pro Monat

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

- Was ist?:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.

x
Produktdetails
Hervorheben

portable vibration meter

,

digital vibration meter

Hinterlass eine Nachricht
Produkt-Beschreibung

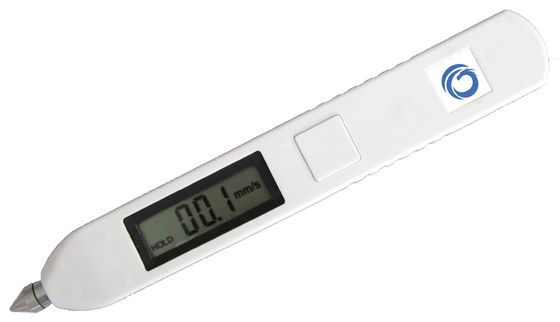

Digital Vibration Pen, Portable Vibration Meter, Handheld Vibration Meter, skf vibration pen, vibra pen, digital vibra pen,digital vibration meter HG-6400

HG-6400: Velocity  0.1mm/s-199.9mm/s(RMS)

HG-6410: Displacement  0.001-1.999mm

HG-6420  Acceleration 0.1-100m/s2

Features:
• Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on.
• Compact size, small weight, easy handling
• Prompt testing of vibration on the workshop machines
• For quick checking of unbalance misalignment, bearings and gears
• Guard against mechanical malfunction
• Holding tested value for 40 seconds
• Automatic switch off after 40 seconds

*Rechargeable battery,long working time

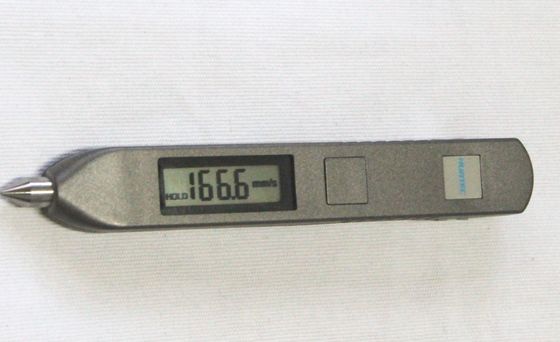

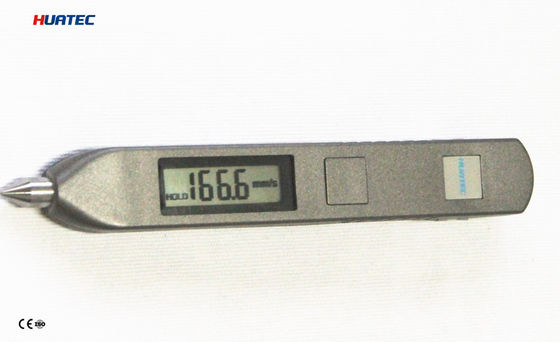

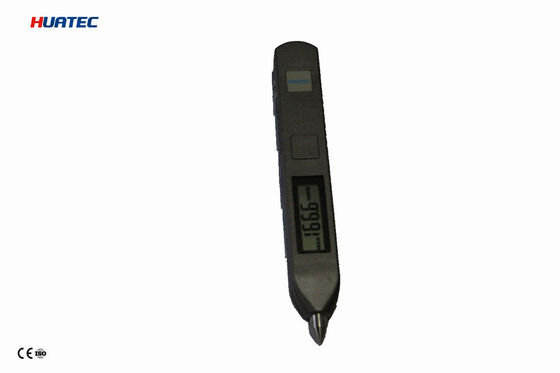

•  Portable Digital Vibration Pen HG-6400 is used for testing of velocity

Parameters

Velocity

Testing range

Velocity:0.1mm/s-199.9mm/s(RMS)

Frequency range

Velocity:10Hz~1kHz

Accuracy

±5%

Display

31/2 digits LCD

Power supply

Built-in rechargeable lithium batery 3.7v

Batterycapacity

Approx 4.5 hours working continuously

Operating Temperature

0℃~40℃

Humidity

<85%

Dimension

150mm*22*18mm

Dimension Weight

55g(including batteries)

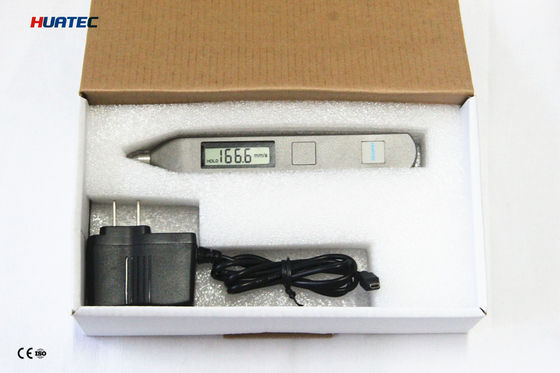

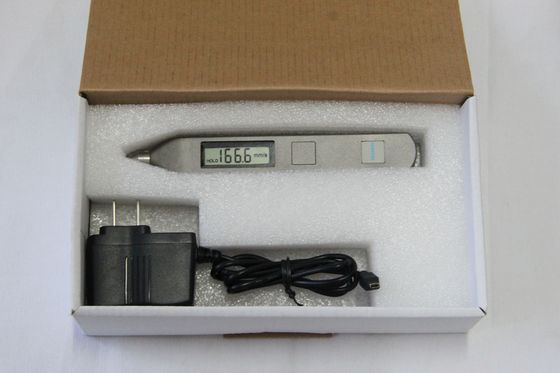

Standard delivery
• Main unit
• Rechargeable battery
• Protection pocket
• Certificate
• Instruction manual
• Warranty card
