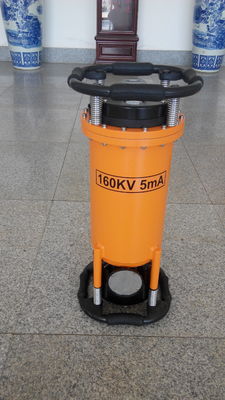

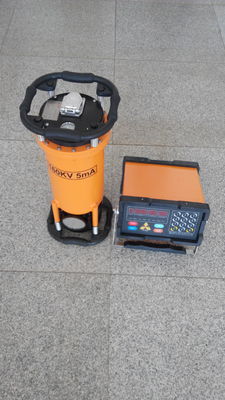

Directional Radiation Portable X-Ray Flaw Detector XXG1605 With Ceramic X-Ray Tube 160kv

  • Directional Radiation Portable X-Ray Flaw Detector XXG1605 With Ceramic X-Ray Tube 160kv
  • Directional Radiation Portable X-Ray Flaw Detector XXG1605 With Ceramic X-Ray Tube 160kv
  • Directional Radiation Portable X-Ray Flaw Detector XXG1605 With Ceramic X-Ray Tube 160kv
  • Directional Radiation Portable X-Ray Flaw Detector XXG1605 With Ceramic X-Ray Tube 160kv
  • Directional Radiation Portable X-Ray Flaw Detector XXG1605 With Ceramic X-Ray Tube 160kv
Herkunftsort Peking
Markenname HUATEC
Zertifizierung ISO, CE, GOST
Modellnummer Der Begriff "Fördermittel" ist nicht mehr in Kraft.
Min Bestellmenge 1 Stück
Verpackung Informationen Standardpaket für die Ausfuhr
Lieferzeit 1-4days
Zahlungsbedingungen T/T, PayPal, Western Union
Versorgungsmaterial-Fähigkeit 500 Stück pro Monat

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

- Was ist?:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.

x
Produktdetails
Rohrmaterial aus Keramik Rohrspannung 60 bis 160 KV
Röhrenstrom 5mA/6mA Eingang KW 1.5 kW
Maximales Durchdringen 18 mm
Hervorheben

x ray inspection equipment

,

welding x ray machine
Hinterlass eine Nachricht
Produkt-Beschreibung

Directional radiation portable X-ray flaw detector XXQ-1605 glass tube
(Glass x-ray tube)
XXQ series are suitable for the material directional of thin iron plate, aluminum, rubber and so on, may get very good picture quality and clarity.
Feature:
●Checking the software and hardware itself after start the machine
●Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports
●Can adjust exposure parameters with keys ( easy operation.)
●Has the function of Delay time opening HV. Convenient for operator keep away from dangerous field
●Can adjust high voltage slowly for protecting X-ray generator
●Automatically controlling according to 1:1 working and rest operating way, the longest continuous exposure period is 5 minutes.
●Including complete protecting system: over KV, over KV, low mA, over mA, over temperature and optical-sound alarming
●Convenient for repairing and maintenance
●Much more Substance for structure designing, much more convenient for local operation
●Time can be changed for±0.3 according to the power supply net to make the exposure more precise
Specification:




Output voltage
(Kv)

Input
(KW)

Focus spot
(mm)

Beam angle

Max penetration
(mm)

Weight (KG)

Dimensions (mm)

Generator

Controller

Generator

Controller

XXQ-1605

60-160

1.5

0.8X0.8

40°

18

18

9.4

225x225x600

350x290x160

Standard Delivery

Directional glass X-ray tube

 1 Pcs



Generator

 1 Set

　

High voltage joins cable

 1 Pcs

25 Meters

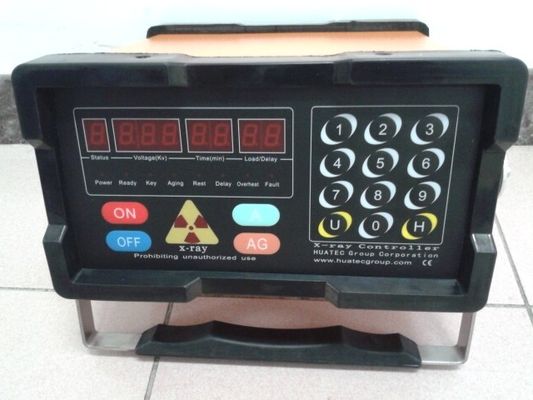

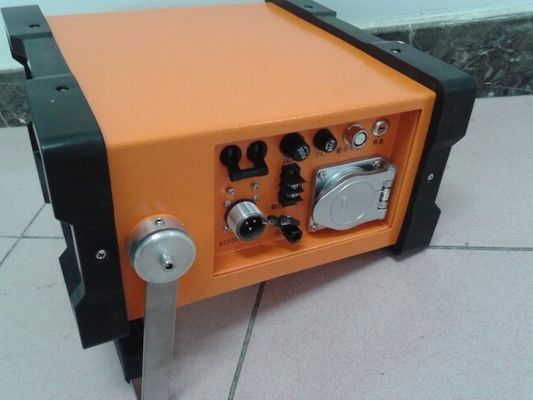

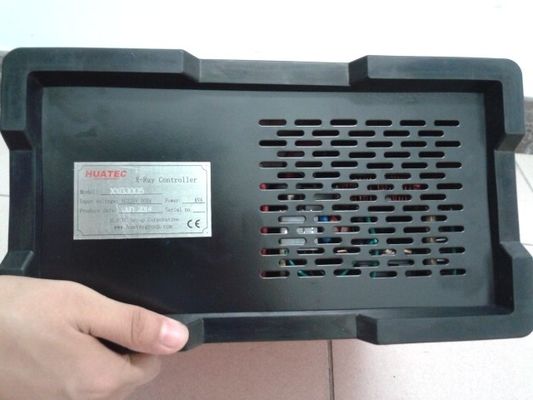

Controller

  1 Set

　

Power cable

 1 Pcs

10 Meters

Grounding cable

 1 Pcs

5 Meters

Accessories

  1 Set

　

(Including: alarm lamp, 1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)


Directional Radiation Portable X-Ray Flaw Detector XXG1605 With Ceramic X-Ray Tube 160kv 0
