Panoramic radiation portable X-ray flaw detector XXH-2005 for welding line detection
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
- Was ist?:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.
xProduktdetails
| Hervorheben | x ray inspection equipment,welding x ray machine |
||
|---|---|---|---|
Produkt-Beschreibung

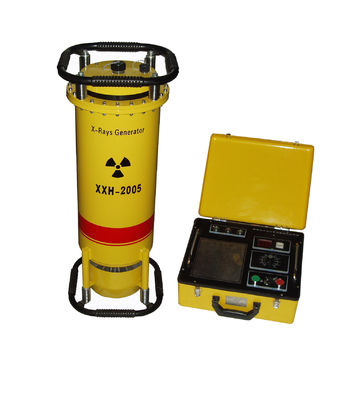

Panoramic radiation portable X-ray flaw detector XXH-2005 for welding line detection
XXH series are suitable for the welding line detection of little pipe. Installing carrying wheel or pipeline creeping device, convenient to set up in pipeline (controller also may enter pipeline with generator together), once exposure complete one week welding line detection.
Feature:
●Checking the software and hardware itself after start the machine
●Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports
●Can adjust exposure parameters with keys ( easy operation.)
●Has the function of Delay time opening HV. Convenient for operator keep away from dangerous field
●Can adjust high voltage slowly for protecting X-ray generator
●Automatically controlling according to 1:1 working and rest operating way, the longest continuous exposure period is 5 minutes.
●Including complete protecting system: over KV, low mA, over mA, over temperature and optical-sound alarming
●Convenient for repairing and maintenance
●Much more Substance for structure designing, much more convenient for local operation
●Time can be changed for±0.3 according to the power supply net to make the exposure more precise
Specification:
|
|
Output voltage (Kv) |
Input (KW) |
Focus spot (mm) |
Beam angle |
Max penetration (mm) |
Weight (KG) |
Dimensions (mm) |
||||
|
Level target |
Cone target |
Level target |
Cone target |
Generator |
Controller |
Generator |
Controller |
||||
|
XXH-2005 |
100-200 |
2.0 |
1.0x3.5 |
25°+5° |
30°+5° |
27 |
24 |
22.5 |
11 |
280x280x650 |
350x290x160 |
Standard Delivery
|
Directional glass X-ray tube |
1 Pcs |
|
|
Generator |
1 Set |
|
|
High voltage joins cable |
1 Pcs |
25 Meters |
|
Controller |
1 Set |
|
|
Power cable |
1 Pcs |
10 Meters |
|
Grounding cable |
1 Pcs |
5 Meters |
|
Accessories |
1 Set |
|
|
(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc) |
||
