Directional radiation portable X-ray flaw detector XXG-3005 with ceramic x-ray tube

  • Directional radiation portable X-ray flaw detector XXG-3005 with ceramic x-ray tube
Herkunftsort Peking
Markenname HUATEC
Zertifizierung ISO, CE, GOST
Modellnummer XXG-3005
Min Bestellmenge 1 Stück
Verpackung Informationen Standardpaket für die Ausfuhr
Lieferzeit 1-4days
Zahlungsbedingungen T/T, PayPal, Western Union
Versorgungsmaterial-Fähigkeit 500 Stück pro Monat

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

- Was ist?:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.

x
Produktdetails
Hervorheben

x ray inspection equipment

,

industrial x ray machine
Hinterlass eine Nachricht
Produkt-Beschreibung

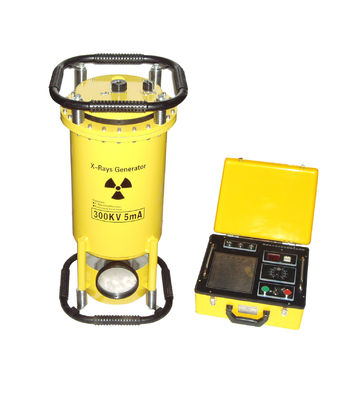

Directional radiation portable X-ray flaw detector XXG-3005

(Ceramic X-ray Tube)

XXG series are ceramic X-ray tube, both can be directional model and Panoramic, it is more durable than the glass tube: shake proof and long working life.

Feature:
●Checking the software and hardware itself after start the machine

●Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports

●Can adjust exposure parameters with keys ( easy operation.)

●Has the function of Delay time opening HV. Convenient for operator keep away from dangerous field

●Can adjust high voltage slowly for protecting X-ray generator

●Automatically controlling according to 1:1 working and rest operating way, the longest continuous exposure period is 5 minutes.

●Including complete protecting system: over KV, low mA, over mA, over temperature and optical-sound alarming

●Convenient for repairing and maintenance

●Much more Substance for structure designing, much more convenient for local operation

●Time can be changed for±0.3 according to the power supply net to make the exposure more precise

Specification:




Output voltage

(Kv)

Input

(KW)

Focus spot

(mm)

Beam angle

Max penetration

(mm)

Weight (KG)

Dimensions (mm)

Generator

Controller

Generator

Controller

XXG-3005

170-300

3.0

2.5X2.5

40°+5°

50

42

11

335x335x835

350x290x160

Standard Delivery

Directional glass X-ray tube

 1 Pcs



Generator

 1 Set

　

High voltage joins cable

 1 Pcs

25 Meters

Controller

  1 Set

　

Power cable

 1 Pcs

10 Meters

Grounding cable

 1 Pcs

5 Meters

Accessories

  1 Set

　

(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)
