Portable Ultrasonic Thickness Gauge Spheroidization Rate Tester High Precision Timing

  • Portable Ultrasonic Thickness Gauge Spheroidization Rate Tester High Precision Timing
  • Portable Ultrasonic Thickness Gauge Spheroidization Rate Tester High Precision Timing
Herkunftsort Peking
Markenname HUATEC
Zertifizierung ISO, CE, GOST
Modellnummer TG-1000C
Min Bestellmenge 1 Stück
Verpackung Informationen Standardpaket für die Ausfuhr
Lieferzeit 1-4days
Zahlungsbedingungen T/T, PayPal, Western Union
Versorgungsmaterial-Fähigkeit 500 Stück pro Monat

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

- Was ist?:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.

x
Produktdetails
Modell TG-1000C Anzeige Anzeige FSTN LCD mit Hintergrundbeleuchtung
Stromversorgung 3.7V Li-Ionen-Ladebatterie Messbereich 0.50 mm bis 508 mm ((0,02" bis 20,00")
Größe 157 mm*78 mm*37 mm Gewicht 250 g
Kalibrierung der Sonde Echtzeit-Temperaturkompensationstechnik zur Unterstützung der einmaligen Sondenkalibrierung für die Gewinn 16 Stufen gewinnverstellbar
Gedächtnis 1000 Daten Geschwindigkeit der Seele 1 ~ 19999 m/s
Drucker Optionale tragbare Bluetooth-Wärmedrucker
Hervorheben

portable ultrasonic thickness gauge

,

through coating thickness gauge
Hinterlass eine Nachricht
Produkt-Beschreibung

Portable Ultrasonic Online Velocity Gauge Spheroidization rate tester

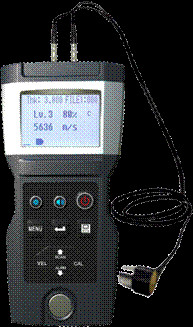

TG-1000C Online Ultrasonic Velocity Gauge



TG-1000C is a portable online measurement & command control ultrasonic velocity gauge. Based on the same operating principles as SONAR it is capable of measuring the speed of sound (velocity) through the material. It is suitable for a variety of metallic and non-metallic materials such as casts, alloys or plastics, and can be used to indicate the consistency of the material.



Features:

  • High precision timing chip & V-Path model used for precision measurement
  • Real-time Temperature Compensation Technic supporting One-time probe calibration for long term usage.
  • Velocity can be directly measured and used in evaluation of spheroidization rate
  • Bluetooth & Mini-USB interface for printing & communication, host software upgradable

Main Functions:

  • Scan mode, min/max capture mode, and alarm mode support
  • Thickness can be measured by a known velocity
  • 16 stages gain adjustable
  • Storage capacity of 1000 measurements with velocity, thickness, time, etc.
  • Communicate with PC or smart phones, support online measurement & command control

Technical Parameters

Sound Velocity Range 1 ~ 19999 m/s Thickness Range See Probe Parameters
Resolution 1m/s, 0.001mm / 0.0001inches Accuracy See Probe Parameters
Measuring Period 4 times per second Probe Frequency 2MHz,3MHz,5MHz,7.5MHz
Calibration Mode Probe Calibration, Real-time Temperature Compensation Data Storage 1000 measurements, including thickness, sound velocity, time, etc.
Calibration block 4.000mm(Steel) Gain Adjustable 16 Stages
Measuring Mode scan, min/max capture, alarm Thickness measure Support
Display English
FSTN LCD Display with backlight		 Display Content Thickness, Sound velocity, Stability, Battery, Measuring Mode, Time, etc.
Communication Bluetooth & Mini-USB interface, virtual serial port protocol Print Optional portable Bluetooth thermal printers
Power Supply 3.7V Li-Ion chargeable battery Power off Timeout power off, low battery power off
Usage Temperature -10 ~ 50 °C Storage Temperature -30 ~ 60 °C
Size 157mm*78mm*37mm Weight About 260g
Shell Material ABS & PC alloy Box Material ABS (IK08 / IP67)




Probe parameters

Label 5M Φ10 5M PT-08 7.5M PT-06 2M ZT-12 3M GT-12
Measure Range (Steel) 0.75~300 mm 0.8~225 mm 0.8~50 mm 3.0~400 mm 2.0~200 mm
Min. Measure Diameter Ø25 x 3 mm Ø20 x 1.2 mm Ø15 x 1.2 mm Ø30 x 4 mm Ø25 x 3 mm
Probe Diameter 13mm 11mm 9mm 17mm 15mm
Probe Frequency 5MHz 5MHz 7.5MHz 2MHz 3MHz
Contact Temperature -10~60°C -10~60°C -10~60°C -10~60°C -10~310°C



Version Comparison

Version Online measurement Command control
TG-1000 x x
TG-1000C √ √
